Square shape wall-recessed luminaire with floor-wahser light distribution for outdoor installation, phospho-chromatised and polyester powder coated diecast copper-free aluminium body, tempered sand-blasted glass diffuser, moulded silicone gaskets, polypropylene housing for recess. Remote constant voltage 24V DC power supply needed. IP66 rating.
Passoluce
Mini Square
506004-06

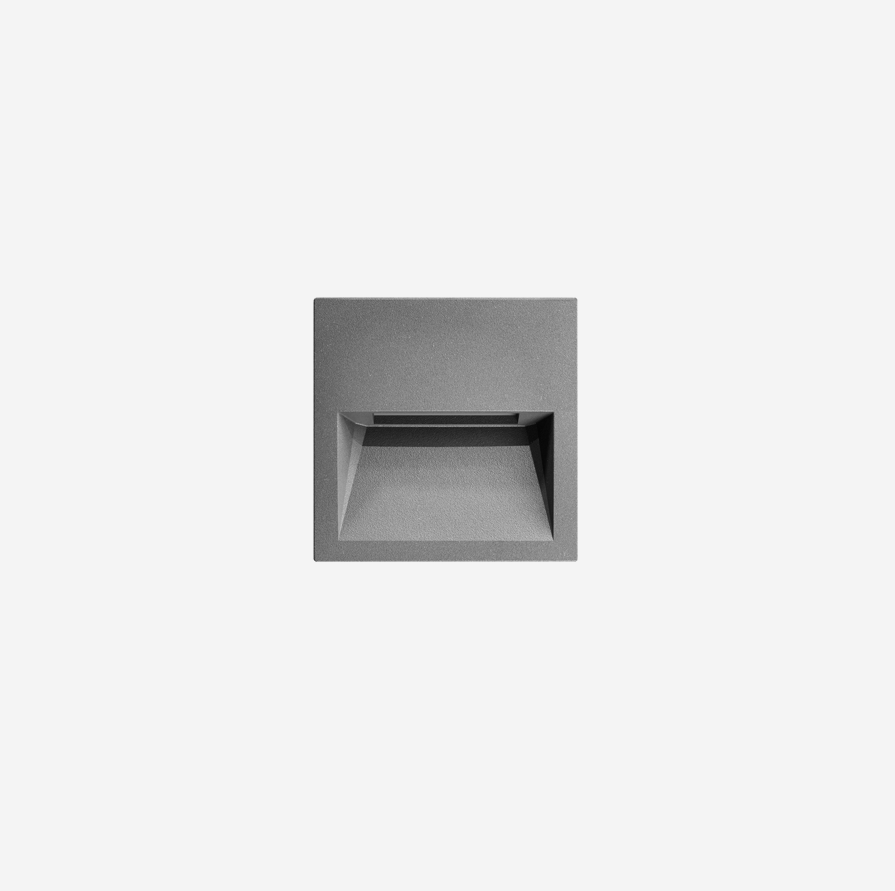

Product IMAGE
Technical drawing
506004
Passoluce Mini Square
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 506004.27.FW.01.0 | 3W | 2700K | .FW | 110 |
RAL9006 |
ON/OFF | ||
| 506004.27.FW.02.0 | 3W | 2700K | .FW | 110 |
RAL7016 |
ON/OFF | ||
| 506004.27.FW.03.0 | 3W | 2700K | .FW | 110 |
RAL9005 BLACK |
ON/OFF | ||
| 506004.30.FW.01.0 | 3W | 3000K | .FW | 120 |
RAL9006 |
ON/OFF | ||
| 506004.30.FW.02.0 | 3W | 3000K | .FW | 120 |
RAL7016 |
ON/OFF | ||
| 506004.30.FW.03.0 | 3W | 3000K | .FW | 120 |
RAL9005 BLACK |
ON/OFF | ||
| 506004.40.FW.01.0 | 3W | 4000K | .FW | 140 |
RAL9006 |
ON/OFF | ||
| 506004.40.FW.02.0 | 3W | 4000K | .FW | 140 |
RAL7016 |
ON/OFF | ||
| 506004.40.FW.03.0 | 3W | 4000K | .FW | 140 |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
506005
Passoluce Mini Square Diffused
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 506005.27.DF.01.0 | 3W | 2700K | .DF | 120 |
RAL9006 |
ON/OFF | ||
| 506005.27.DF.02.0 | 3W | 2700K | .DF | 120 |
RAL7016 |
ON/OFF | ||
| 506005.27.DF.03.0 | 3W | 2700K | .DF | 120 |
RAL9005 BLACK |
ON/OFF | ||
| 506005.30.DF.01.0 | 3W | 3000K | .DF | 130 |
RAL9006 |
ON/OFF | ||
| 506005.30.DF.02.0 | 3W | 3000K | .DF | 130 |
RAL7016 |
ON/OFF | ||
| 506005.30.DF.03.0 | 3W | 3000K | .DF | 130 |
RAL9005 BLACK |
ON/OFF | ||
| 506005.40.DF.01.0 | 3W | 4000K | .DF | 150 |
RAL9006 |
ON/OFF | ||
| 506005.40.DF.02.0 | 3W | 4000K | .DF | 150 |
RAL7016 |
ON/OFF | ||
| 506005.40.DF.03.0 | 3W | 4000K | .DF | 150 |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
506006
Passoluce Mini Square Grid
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 506006.27.DF.01.0 | 3W | 2700K | .DF | 110 |
RAL9006 |
ON/OFF | ||
| 506006.27.DF.02.0 | 3W | 2700K | .DF | 110 |
RAL7016 |
ON/OFF | ||
| 506006.27.DF.03.0 | 3W | 2700K | .DF | 110 |
RAL9005 BLACK |
ON/OFF | ||
| 506006.30.DF.01.0 | 3W | 3000K | .DF | 120 |
RAL9006 |
ON/OFF | ||
| 506006.30.DF.02.0 | 3W | 3000K | .DF | 120 |
RAL7016 |
ON/OFF | ||
| 506006.30.DF.03.0 | 3W | 3000K | .DF | 120 |
RAL9005 BLACK |
ON/OFF | ||
| 506006.40.DF.01.0 | 3W | 4000K | .DF | 140 |
RAL9006 |
ON/OFF | ||
| 506006.40.DF.02.0 | 3W | 4000K | .DF | 140 |
RAL7016 |
ON/OFF | ||
| 506006.40.DF.03.0 | 3W | 4000K | .DF | 140 |
RAL9005 BLACK |
ON/OFF | ||
