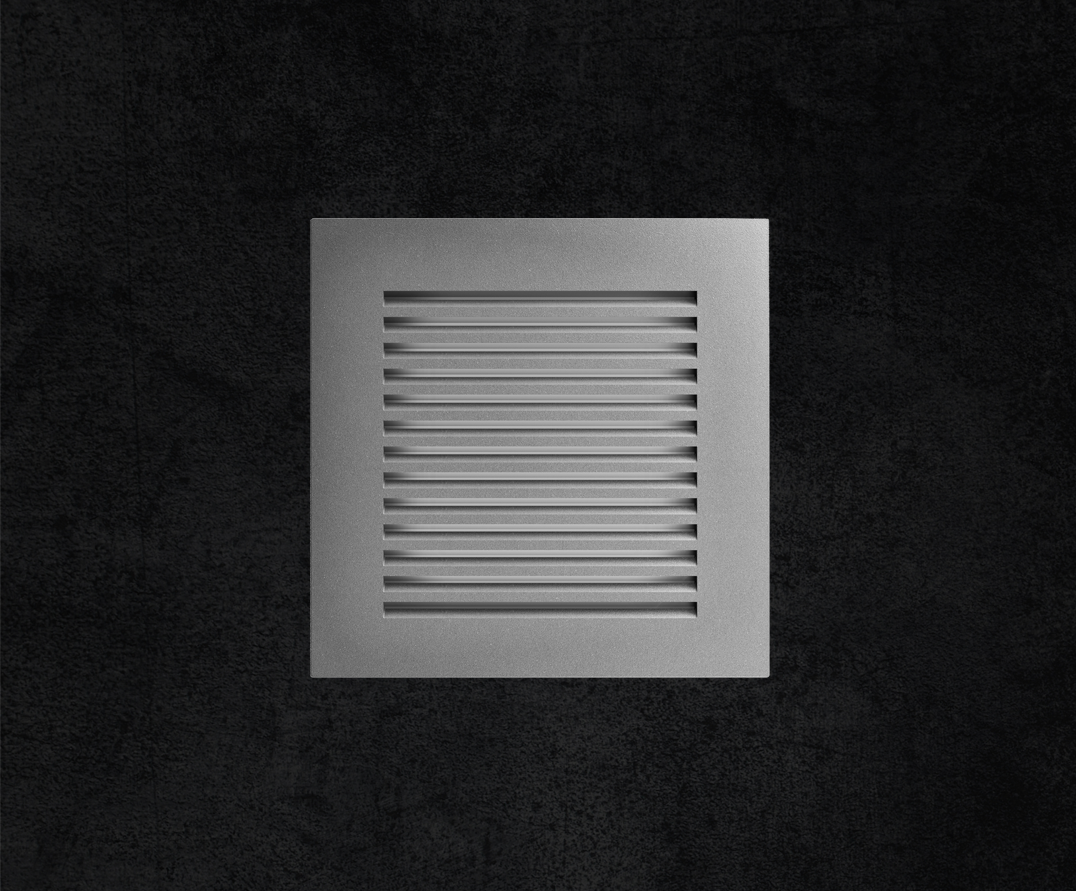

Square shape wall-recessed luminaire with diffused light distribution for outdoor installation, phospho- chromatised and polyester powder coated diecast copper-free aluminium body and protection grid, tempered sand-blasted glass diffuser, moulded silicone gaskets, polypropylene housing for recess. Built-in driver 220-240V 50-60Hz. IP66 rating.
Passoluce
Medium Square
Grid
506015
-
Wattage
8W
-
CCT
3000K
-
Beam Angle
.DF
-
Lumens
306
-
Finish
RAL9005 BLACK -
IP Rating
IP66
-
IK Rating
IK08
-
Coating
Polyester powder coating with phosphocromating pre-finish
-
Screws
Copper-free aluminium
-
Transformer
Built-in
-
Gasket
Moulded silicone
-
Glass
Tempered sand-blasted
-
Gross weight
1,00 Kg
Integrated Accessories
506015.30.DF.03.D. _ _
Built-in accessories to be requested when ordering
example 506015.30.DF.03.D.HC
.00
NO ACCESSORY
No accessory
Light Distribution
Download
Info
