Round wall mounted luminaire for outdoor installation on a façade/wall, with light distribution downward only. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 5 CREE XP-G2 LED. IP65 rating.
Tech
Medium Round
401004-17

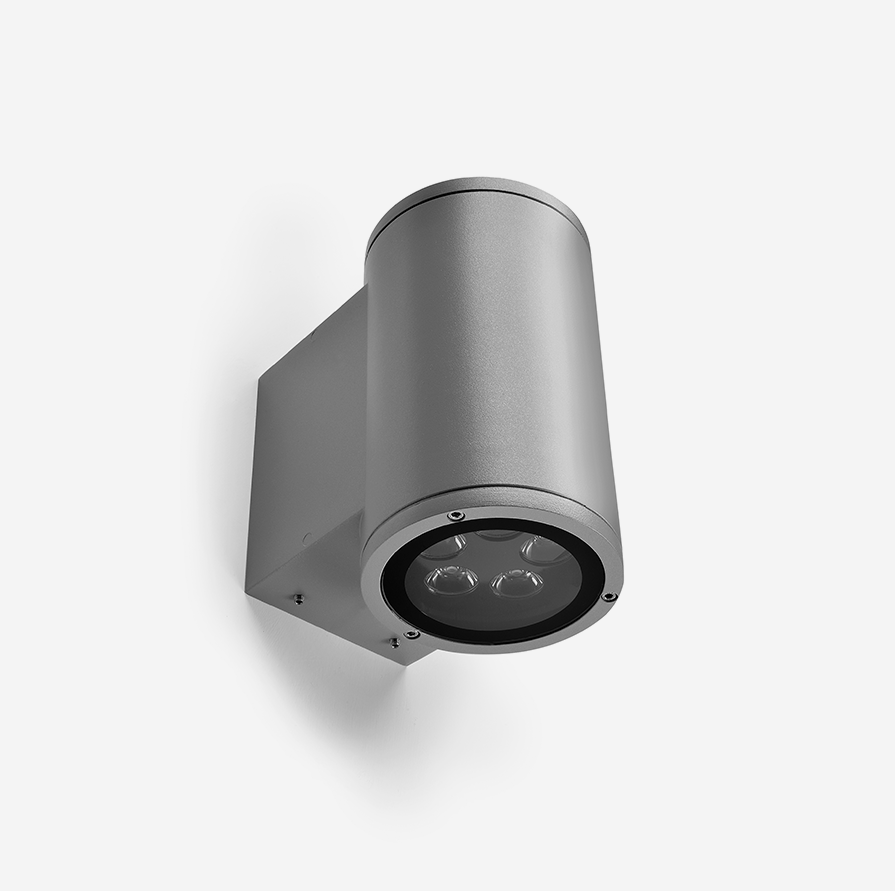

Product IMAGE
Technical drawing
401012
Tech Medium Round 01
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401012.27.04.01.0 | 8W | 2700K | .04° | 618 |
RAL9006 |
ON/OFF | ||
| 401012.27.04.02.0 | 8W | 2700K | .04° | 618 |
RAL7016 |
ON/OFF | ||
| 401012.27.04.03.0 | 8W | 2700K | .04° | 618 |
RAL9005 BLACK |
ON/OFF | ||
| 401012.27.10.01.0 | 8W | 2700K | .10° | 684 |
RAL9006 |
ON/OFF | ||
| 401012.27.10.02.0 | 8W | 2700K | .10° | 684 |
RAL7016 |
ON/OFF | ||
| 401012.27.10.03.0 | 8W | 2700K | .10° | 684 |
RAL9005 BLACK |
ON/OFF | ||
| 401012.27.30.01.0 | 8W | 2700K | .30° | 650 |
RAL9006 |
ON/OFF | ||
| 401012.27.30.02.0 | 8W | 2700K | .30° | 650 |
RAL7016 |
ON/OFF | ||
| 401012.27.30.03.0 | 8W | 2700K | .30° | 650 |
RAL9005 BLACK |
ON/OFF | ||
| 401012.30.04.01.0 | 8W | 3000K | .04° | 650 |
RAL9006 |
ON/OFF | ||
| 401012.30.04.02.0 | 8W | 3000K | .04° | 650 |
RAL7016 |
ON/OFF | ||
| 401012.30.04.03.0 | 8W | 3000K | .04° | 650 |
RAL9005 BLACK |
ON/OFF | ||
| 401012.30.10.01.0 | 8W | 3000K | .10° | 720 |
RAL9006 |
ON/OFF | ||
| 401012.30.10.02.0 | 8W | 3000K | .10° | 720 |
RAL7016 |
ON/OFF | ||
| 401012.30.10.03.0 | 8W | 3000K | .10° | 720 |
RAL9005 BLACK |
ON/OFF | ||
| 401012.30.30.01.0 | 8W | 3000K | .30° | 684 |
RAL9006 |
ON/OFF | ||
| 401012.30.30.02.0 | 8W | 3000K | .30° | 684 |
RAL7016 |
ON/OFF | ||
| 401012.30.30.03.0 | 8W | 3000K | .30° | 684 |
RAL9005 BLACK |
ON/OFF | ||
| 401012.40.04.01.0 | 8W | 4000K | .04° | 677 |
RAL9006 |
ON/OFF | ||
| 401012.40.04.02.0 | 8W | 4000K | .04° | 677 |
RAL7016 |
ON/OFF | ||
| 401012.40.04.03.0 | 8W | 4000K | .04° | 677 |
RAL9005 BLACK |
ON/OFF | ||
| 401012.40.10.01.0 | 8W | 4000K | .10° | 750 |
RAL9006 |
ON/OFF | ||
| 401012.40.10.02.0 | 8W | 4000K | .10° | 750 |
RAL7016 |
ON/OFF | ||
| 401012.40.10.03.0 | 8W | 4000K | .10° | 750 |
RAL9005 BLACK |
ON/OFF | ||
| 401012.40.30.01.0 | 8W | 4000K | .30° | 713 |
RAL9006 |
ON/OFF | ||
| 401012.40.30.02.0 | 8W | 4000K | .30° | 713 |
RAL7016 |
ON/OFF | ||
| 401012.40.30.03.0 | 8W | 4000K | .30° | 713 |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
401004
Tech Medium Round 02
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401004.27.04.01.0 | 2x8W | 2700K | .04° | 2 x 618 |
RAL9006 |
ON/OFF | ||
| 401004.27.04.02.0 | 2x8W | 2700K | .04° | 2 x 618 |
RAL7016 |
ON/OFF | ||
| 401004.27.04.03.0 | 2x8W | 2700K | .04° | 2 x 618 |
RAL9005 BLACK |
ON/OFF | ||
| 401004.27.10.01.0 | 2x8W | 2700K | .10° | 2 x 684 |
RAL9006 |
ON/OFF | ||
| 401004.27.10.02.0 | 2x8W | 2700K | .10° | 2 x 684 |
RAL7016 |
ON/OFF | ||
| 401004.27.10.03.0 | 2x8W | 2700K | .10° | 2 x 684 |
RAL9005 BLACK |
ON/OFF | ||
| 401004.27.30.01.0 | 2x8W | 2700K | .30° | 2 x 650 |
RAL9006 |
ON/OFF | ||
| 401004.27.30.02.0 | 2x8W | 2700K | .30° | 2 x 650 |
RAL7016 |
ON/OFF | ||
| 401004.27.30.03.0 | 2x8W | 2700K | .30° | 2 x 650 |
RAL9005 BLACK |
ON/OFF | ||
| 401004.30.04.01.0 | 2x8W | 3000K | .04° | 2 x 650 |
RAL9006 |
ON/OFF | ||
| 401004.30.04.02.0 | 2x8W | 3000K | .04° | 2 x 650 |
RAL7016 |
ON/OFF | ||
| 401004.30.04.03.0 | 2x8W | 3000K | .04° | 2 x 650 |
RAL9005 BLACK |
ON/OFF | ||
| 401004.30.10.01.0 | 2x8W | 3000K | .10° | 2 x 720 |
RAL9006 |
ON/OFF | ||
| 401004.30.10.02.0 | 2x8W | 3000K | .10° | 2 x 720 |
RAL7016 |
ON/OFF | ||
| 401004.30.10.03.0 | 2x8W | 3000K | .10° | 2 x 720 |
RAL9005 BLACK |
ON/OFF | ||
| 401004.30.30.01.0 | 2x8W | 3000K | .30° | 2 x 684 |
RAL9006 |
ON/OFF | ||
| 401004.30.30.02.0 | 2x8W | 3000K | .30° | 2 x 684 |
RAL7016 |
ON/OFF | ||
| 401004.30.30.03.0 | 2x8W | 3000K | .30° | 2 x 684 |
RAL9005 BLACK |
ON/OFF | ||
| 401004.40.04.01.0 | 2x8W | 4000K | .04° | 2 x 677 |
RAL9006 |
ON/OFF | ||
| 401004.40.04.02.0 | 2x8W | 4000K | .04° | 2 x 677 |
RAL7016 |
ON/OFF | ||
| 401004.40.04.03.0 | 2x8W | 4000K | .04° | 2 x 677 |
RAL9005 BLACK |
ON/OFF | ||
| 401004.40.10.01.0 | 2x8W | 4000K | .10° | 2 x 750 |
RAL9006 |
ON/OFF | ||
| 401004.40.10.02.0 | 2x8W | 4000K | .10° | 2 x 750 |
RAL7016 |
ON/OFF | ||
| 401004.40.10.03.0 | 2x8W | 4000K | .10° | 2 x 750 |
RAL9005 BLACK |
ON/OFF | ||
| 401004.40.30.01.0 | 2x8W | 4000K | .30° | 2 x 713 |
RAL9006 |
ON/OFF | ||
| 401004.40.30.02.0 | 2x8W | 4000K | .30° | 2 x 713 |
RAL7016 |
ON/OFF | ||
| 401004.40.30.03.0 | 2x8W | 4000K | .30° | 2 x 713 |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
401017
Tech Medium Round 01 Pro
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401017.30.04.01.0 | 14W | 3000K | .04° | 1170 |
RAL9006 |
ON/OFF | ||
| 401017.30.04.02.0 | 14W | 3000K | .04° | 1170 |
RAL7016 |
ON/OFF | ||
| 401017.30.04.03.0 | 14W | 3000K | .04° | 1170 |
RAL9005 BLACK |
ON/OFF | ||
| 401017.30.10.01.0 | 14W | 3000K | .10° | 1300 |
RAL9006 |
ON/OFF | ||
| 401017.30.10.02.0 | 14W | 3000K | .10° | 1300 |
RAL7016 |
ON/OFF | ||
| 401017.30.10.03.0 | 14W | 3000K | .10° | 1300 |
RAL9005 BLACK |
ON/OFF | ||
| 401017.30.30.01.0 | 14W | 3000K | .30° | 1230 |
RAL9006 |
ON/OFF | ||
| 401017.30.30.02.0 | 14W | 3000K | .30° | 1230 |
RAL7016 |
ON/OFF | ||
| 401017.30.30.03.0 | 14W | 3000K | .30° | 1230 |
RAL9005 BLACK |
ON/OFF | ||
| 401017.40.04.01.0 | 14W | 4000K | .04° | available on request |
RAL9006 |
ON/OFF | ||
| 401017.40.04.02.0 | 14W | 4000K | .04° | available on request |
RAL7016 |
ON/OFF | ||
| 401017.40.04.03.0 | 14W | 4000K | .04° | available on request |
RAL9005 BLACK |
ON/OFF | ||
| 401017.40.10.01.0 | 14W | 4000K | .10° | available on request |
RAL9006 |
ON/OFF | ||
| 401017.40.10.02.0 | 14W | 4000K | .10° | available on request |
RAL7016 |
ON/OFF | ||
| 401017.40.10.03.0 | 14W | 4000K | .10° | available on request |
RAL9005 BLACK |
ON/OFF | ||
| 401017.40.30.01.0 | 14W | 4000K | .30° | available on request |
RAL9006 |
ON/OFF | ||
| 401017.40.30.02.0 | 14W | 4000K | .30° | available on request |
RAL7016 |
ON/OFF | ||
| 401017.40.30.03.0 | 14W | 4000K | .30° | available on request |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
401016
Tech Medium Round 02 Pro
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401016.30.04.01.0 | 2x14W | 3000K | .04° | 2 x 1170 |
RAL9006 |
ON/OFF | ||
| 401016.30.04.02.0 | 2x14W | 3000K | .04° | 2 x 1170 |
RAL7016 |
ON/OFF | ||
| 401016.30.04.03.0 | 2x14W | 3000K | .04° | 2 x 1170 |
RAL9005 BLACK |
ON/OFF | ||
| 401016.30.10.01.0 | 2x14W | 3000K | .10° | 2 x 1300 |
RAL9006 |
ON/OFF | ||
| 401016.30.10.02.0 | 2x14W | 3000K | .10° | 2 x 1300 |
RAL7016 |
ON/OFF | ||
| 401016.30.10.03.0 | 2x14W | 3000K | .10° | 2 x 1300 |
RAL9005 BLACK |
ON/OFF | ||
| 401016.30.30.01.0 | 2x14W | 3000K | .30° | 2 x 1230 |
RAL9006 |
ON/OFF | ||
| 401016.30.30.02.0 | 2x14W | 3000K | .30° | 2 x 1230 |
RAL7016 |
ON/OFF | ||
| 401016.30.30.03.0 | 2x14W | 3000K | .30° | 2 x 1230 |
RAL9005 BLACK |
ON/OFF | ||
| 401016.40.04.01.0 | 2x14W | 4000K | .04° | available on request |
RAL9006 |
ON/OFF | ||
| 401016.40.04.02.0 | 2x14W | 4000K | .04° | available on request |
RAL7016 |
ON/OFF | ||
| 401016.40.04.03.0 | 2x14W | 4000K | .04° | available on request |
RAL9005 BLACK |
ON/OFF | ||
| 401016.40.10.01.0 | 2x14W | 4000K | .10° | available on request |
RAL9006 |
ON/OFF | ||
| 401016.40.10.02.0 | 2x14W | 4000K | .10° | available on request |
RAL7016 |
ON/OFF | ||
| 401016.40.10.03.0 | 2x14W | 4000K | .10° | available on request |
RAL9005 BLACK |
ON/OFF | ||
| 401016.40.30.01.0 | 2x14W | 4000K | .30° | available on request |
RAL9006 |
ON/OFF | ||
| 401016.40.30.02.0 | 2x14W | 4000K | .30° | available on request |
RAL7016 |
ON/OFF | ||
| 401016.40.30.03.0 | 2x14W | 4000K | .30° | available on request |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
