Rectangular wall surface-mounted luminaire for outdoor installation on a wall, no recess needed. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 21 mid-power CREE XH-G LED. IP65 rating.
Surf
Maxi Rectangular
401608

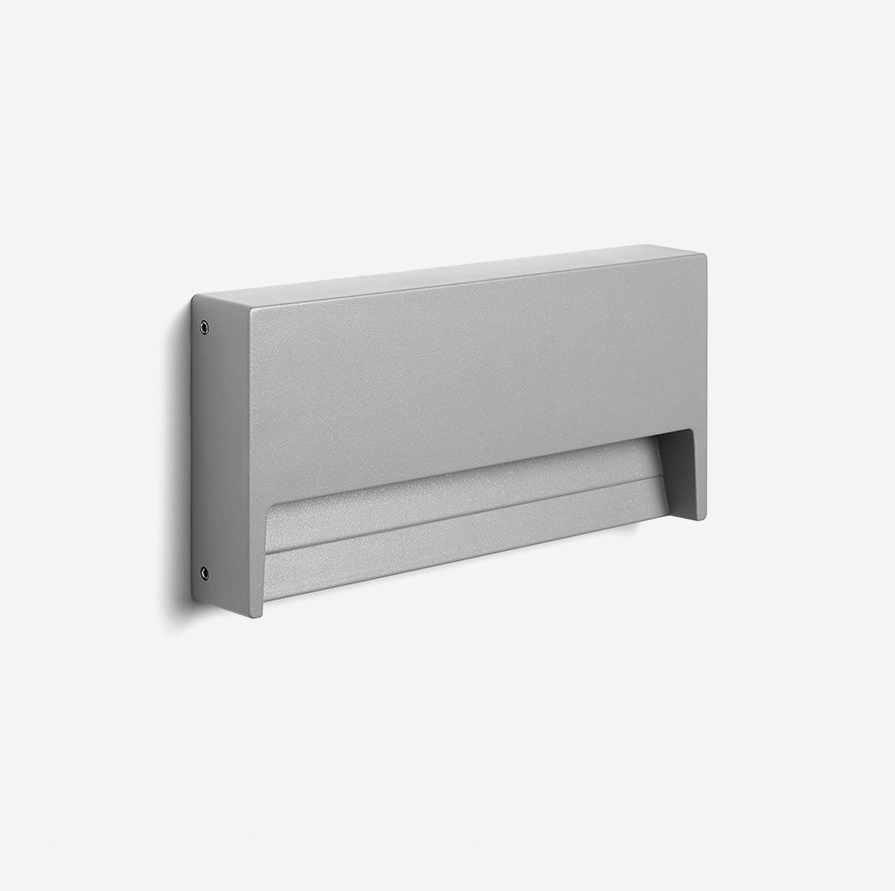

Product IMAGE
Technical drawing
401608
Surf Maxi Rectangular
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401608.27.FW.01.0 | 14W | 2700K | .FW | 950 |
RAL9006 |
ON/OFF | ||
| 401608.27.FW.02.0 | 14W | 2700K | .FW | 950 |
RAL7016 |
ON/OFF | ||
| 401608.27.FW.03.0 | 14W | 2700K | .FW | 950 |
RAL9005 BLACK |
ON/OFF | ||
| 401608.30.FW.01.0 | 14W | 3000K | .FW | 1000 |
RAL9006 |
ON/OFF | ||
| 401608.30.FW.02.0 | 14W | 3000K | .FW | 1000 |
RAL7016 |
ON/OFF | ||
| 401608.30.FW.03.0 | 14W | 3000K | .FW | 1000 |
RAL9005 BLACK |
ON/OFF | ||
