Wall applique for outdoor installation on a façade/wall, with one side light only. Body in anodized aluminum with phospho-chromatised and polyester powder coating, tempered safety glass, moulded silicone gasket and stainless steel screws. Constant current 350mA remote driver needed. With 1 x CREE “XP-G2” LED. IP66 rating.
Nanowall
Square Xxs
403109-10

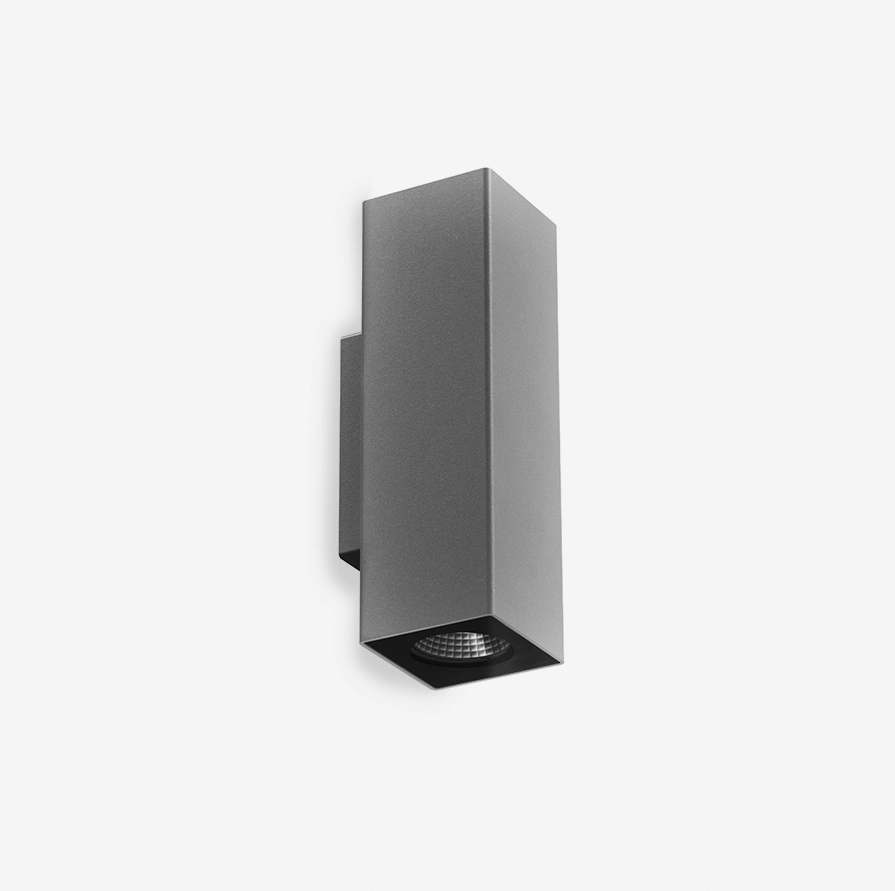

Product IMAGE
Technical drawing
403109
Nanowall Square Xxs 01
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403109.27.04.01.0 | 1W | 2700K | .04° | 55 |
RAL9006 |
ON/OFF | ||
| 403109.27.04.02.0 | 1W | 2700K | .04° | 55 |
RAL7016 |
ON/OFF | ||
| 403109.27.04.03.0 | 1W | 2700K | .04° | 55 |
RAL9005 BLACK |
ON/OFF | ||
| 403109.27.08.01.0 | 1W | 2700K | .08° | 70 |
RAL9006 |
ON/OFF | ||
| 403109.27.08.02.0 | 1W | 2700K | .08° | 70 |
RAL7016 |
ON/OFF | ||
| 403109.27.08.03.0 | 1W | 2700K | .08° | 70 |
RAL9005 BLACK |
ON/OFF | ||
| 403109.27.32.01.0 | 1W | 2700K | .32° | 60 |
RAL9006 |
ON/OFF | ||
| 403109.27.32.02.0 | 1W | 2700K | .32° | 60 |
RAL7016 |
ON/OFF | ||
| 403109.27.32.03.0 | 1W | 2700K | .32° | 60 |
RAL9005 BLACK |
ON/OFF | ||
| 403109.30.04.01.0 | 1W | 3000K | .04° | 60 |
RAL9006 |
ON/OFF | ||
| 403109.30.04.02.0 | 1W | 3000K | .04° | 60 |
RAL7016 |
ON/OFF | ||
| 403109.30.04.03.0 | 1W | 3000K | .04° | 60 |
RAL9005 BLACK |
ON/OFF | ||
| 403109.30.08.01.0 | 1W | 3000K | .08° | 75 |
RAL9006 |
ON/OFF | ||
| 403109.30.08.02.0 | 1W | 3000K | .08° | 75 |
RAL7016 |
ON/OFF | ||
| 403109.30.08.03.0 | 1W | 3000K | .08° | 75 |
RAL9005 BLACK |
ON/OFF | ||
| 403109.30.32.01.0 | 1W | 3000K | .32° | 65 |
RAL9006 |
ON/OFF | ||
| 403109.30.32.02.0 | 1W | 3000K | .32° | 65 |
RAL7016 |
ON/OFF | ||
| 403109.30.32.03.0 | 1W | 3000K | .32° | 65 |
RAL9005 BLACK |
ON/OFF | ||
| 403109.40.04.01.0 | 1W | 4000K | .04° | 65 |
RAL9006 |
ON/OFF | ||
| 403109.40.04.02.0 | 1W | 4000K | .04° | 65 |
RAL7016 |
ON/OFF | ||
| 403109.40.04.03.0 | 1W | 4000K | .04° | 65 |
RAL9005 BLACK |
ON/OFF | ||
| 403109.40.08.01.0 | 1W | 4000K | .08° | 80 |
RAL9006 |
ON/OFF | ||
| 403109.40.08.02.0 | 1W | 4000K | .08° | 80 |
RAL7016 |
ON/OFF | ||
| 403109.40.08.03.0 | 1W | 4000K | .08° | 80 |
RAL9005 BLACK |
ON/OFF | ||
| 403109.40.32.01.0 | 1W | 4000K | .32° | 70 |
RAL9006 |
ON/OFF | ||
| 403109.40.32.02.0 | 1W | 4000K | .32° | 70 |
RAL7016 |
ON/OFF | ||
| 403109.40.32.03.0 | 1W | 4000K | .32° | 70 |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
403110
Nanowall Square Xxs 02
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 403110.27.04.01.0 | 2x1W | 2700K | .04° | 2x55 |
RAL9006 |
ON/OFF | ||
| 403110.27.04.02.0 | 2x1W | 2700K | .04° | 2x55 |
RAL7016 |
ON/OFF | ||
| 403110.27.04.03.0 | 2x1W | 2700K | .04° | 2x55 |
RAL9005 BLACK |
ON/OFF | ||
| 403110.27.08.01.0 | 2x1W | 2700K | .08° | 2x70 |
RAL9006 |
ON/OFF | ||
| 403110.27.08.02.0 | 2x1W | 2700K | .08° | 2x70 |
RAL7016 |
ON/OFF | ||
| 403110.27.08.03.0 | 2x1W | 2700K | .08° | 2x70 |
RAL9005 BLACK |
ON/OFF | ||
| 403110.27.32.01.0 | 2x1W | 2700K | .32° | 2x60 |
RAL9006 |
ON/OFF | ||
| 403110.27.32.02.0 | 2x1W | 2700K | .32° | 2x60 |
RAL7016 |
ON/OFF | ||
| 403110.27.32.03.0 | 2x1W | 2700K | .32° | 2x60 |
RAL9005 BLACK |
ON/OFF | ||
| 403110.30.04.01.0 | 2x1W | 3000K | .04° | 2x60 |
RAL9006 |
ON/OFF | ||
| 403110.30.04.02.0 | 2x1W | 3000K | .04° | 2x60 |
RAL7016 |
ON/OFF | ||
| 403110.30.04.03.0 | 2x1W | 3000K | .04° | 2x60 |
RAL9005 BLACK |
ON/OFF | ||
| 403110.30.08.01.0 | 2x1W | 3000K | .08° | 2x75 |
RAL9006 |
ON/OFF | ||
| 403110.30.08.02.0 | 2x1W | 3000K | .08° | 2x75 |
RAL7016 |
ON/OFF | ||
| 403110.30.08.03.0 | 2x1W | 3000K | .08° | 2x75 |
RAL9005 BLACK |
ON/OFF | ||
| 403110.30.32.01.0 | 2x1W | 3000K | .32° | 2x65 |
RAL9006 |
ON/OFF | ||
| 403110.30.32.02.0 | 2x1W | 3000K | .32° | 2x65 |
RAL7016 |
ON/OFF | ||
| 403110.30.32.03.0 | 2x1W | 3000K | .32° | 2x65 |
RAL9005 BLACK |
ON/OFF | ||
| 403110.40.04.01.0 | 2x1W | 4000K | .04° | 2x65 |
RAL9006 |
ON/OFF | ||
| 403110.40.04.02.0 | 2x1W | 4000K | .04° | 2x65 |
RAL7016 |
ON/OFF | ||
| 403110.40.04.03.0 | 2x1W | 4000K | .04° | 2x65 |
RAL9005 BLACK |
ON/OFF | ||
| 403110.40.08.01.0 | 2x1W | 4000K | .08° | 2x80 |
RAL9006 |
ON/OFF | ||
| 403110.40.08.02.0 | 2x1W | 4000K | .08° | 2x80 |
RAL7016 |
ON/OFF | ||
| 403110.40.08.03.0 | 2x1W | 4000K | .08° | 2x80 |
RAL9005 BLACK |
ON/OFF | ||
| 403110.40.32.01.0 | 2x1W | 4000K | .32° | 2x70 |
RAL9006 |
ON/OFF | ||
| 403110.40.32.02.0 | 2x1W | 4000K | .32° | 2x70 |
RAL7016 |
ON/OFF | ||
| 403110.40.32.03.0 | 2x1W | 4000K | .32° | 2x70 |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
