Square wall surface-mounted luminaire creating a diffused and discrete light through the fixture perimeter on the wall. Fixture for outdoor installation on a wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, frosted polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with low-power CREE LED. IP65 rating.
Eclipse
Mini Square
401702-04
Designed by
PAOLO VILLA

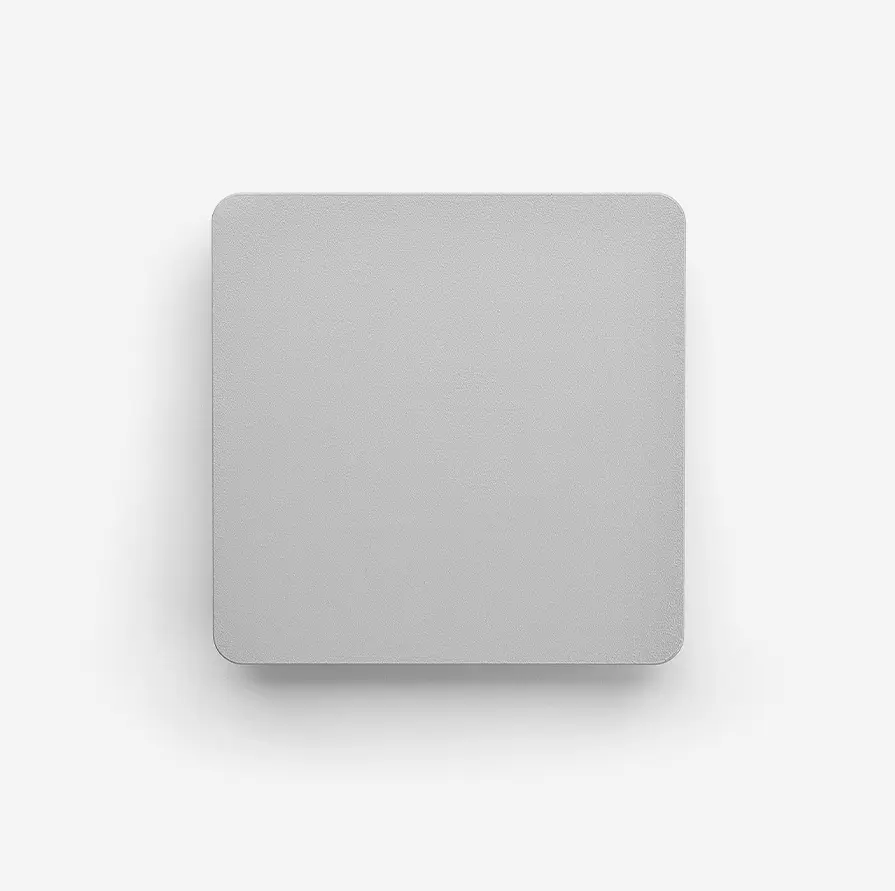

Product IMAGE
Technical drawing
401703
Eclipse Mini Square 01
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401703.30.30.01.0 | 4W | 3000K | .30° | 350 |
RAL9006 |
ON/OFF | ||
| 401703.30.30.02.0 | 4W | 3000K | .30° | 350 |
RAL7016 |
ON/OFF | ||
| 401703.30.30.03.0 | 4W | 3000K | .30° | 350 |
RAL9005 BLACK |
ON/OFF | ||
| 401703.40.30.01.0 | 4W | 4000K | .30° | available on request |
RAL9006 |
ON/OFF | ||
| 401703.40.30.02.0 | 4W | 4000K | .30° | available on request |
RAL7016 |
ON/OFF | ||
| 401703.40.30.03.0 | 4W | 4000K | .30° | available on request |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
401704
Eclipse Mini Square 02
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401704.30.30.01.0 | 8W | 3000K | .30° | 2 x 350 |
RAL9006 |
ON/OFF | ||
| 401704.30.30.02.0 | 8W | 3000K | .30° | 2 x 350 |
RAL7016 |
ON/OFF | ||
| 401704.30.30.03.0 | 8W | 3000K | .30° | 2 x 350 |
RAL9005 BLACK |
ON/OFF | ||
| 401704.40.30.01.0 | 8W | 4000K | .30° | available on request |
RAL9006 |
ON/OFF | ||
| 401704.40.30.02.0 | 8W | 4000K | .30° | available on request |
RAL7016 |
ON/OFF | ||
| 401704.40.30.03.0 | 8W | 4000K | .30° | available on request |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
401702
Eclipse Mini Square
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401702.30.36.01.0 | 10W | 3000K | .36° | 474 |
RAL9006 |
ON/OFF | ||
| 401702.30.36.02.0 | 10W | 3000K | .36° | 474 |
RAL7016 |
ON/OFF | ||
| 401702.30.36.03.0 | 10W | 3000K | .36° | 474 |
RAL9005 BLACK |
ON/OFF | ||
| 401702.40.36.01.0 | 10W | 4000K | .36° | available on request |
RAL9006 |
ON/OFF | ||
| 401702.40.36.02.0 | 10W | 4000K | .36° | available on request |
RAL7016 |
ON/OFF | ||
| 401702.40.36.03.0 | 10W | 4000K | .36° | available on request |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
