Square wall surface-mounted luminaire creating a diffused and discrete light through the fixture perimeter on the wall. Fixture for outdoor installation on a wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, frosted polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with low-power CREE LED. IP65 rating.
Eclipse
Medium Square
401706-08
Designed by
PAOLO VILLA

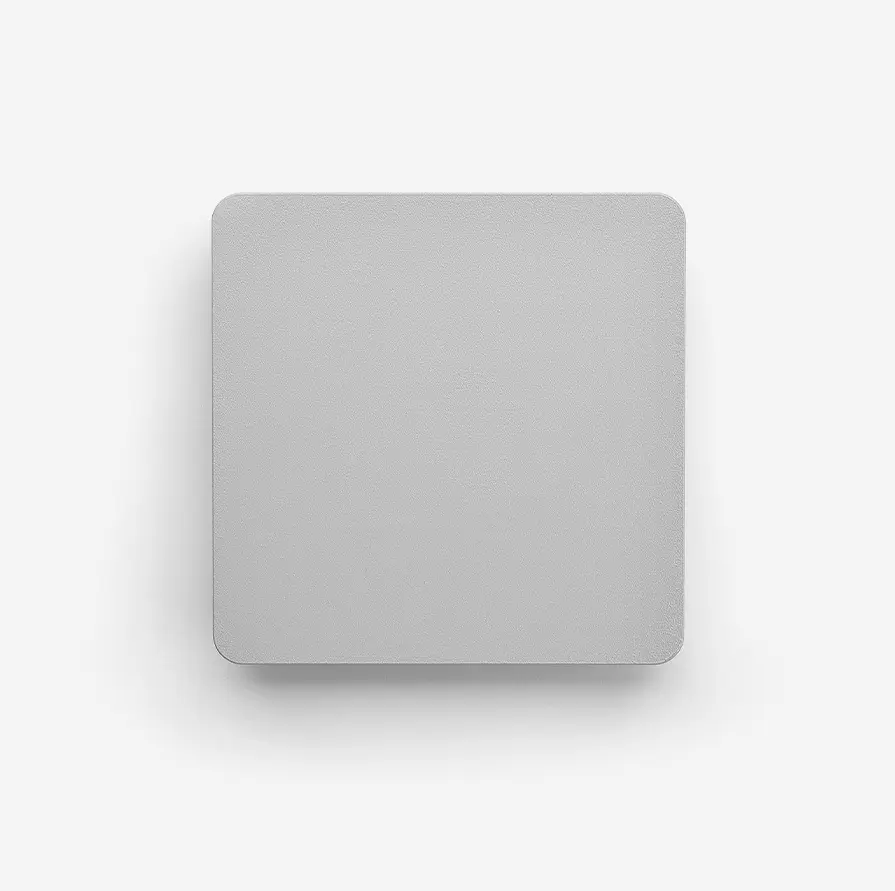

Product IMAGE
Technical drawing
401707
Eclipse Medium Square 01
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401707.30.30.01.0 | 10W | 3000K | .30° | 650 |
RAL9006 |
ON/OFF | ||
| 401707.30.30.02.0 | 10W | 3000K | .30° | 650 |
RAL7016 |
ON/OFF | ||
| 401707.30.30.03.0 | 10W | 3000K | .30° | 650 |
RAL9005 BLACK |
ON/OFF | ||
| 401707.40.30.01.0 | 10W | 4000K | .30° | available on request |
RAL9006 |
ON/OFF | ||
| 401707.40.30.02.0 | 10W | 4000K | .30° | available on request |
RAL7016 |
ON/OFF | ||
| 401707.40.30.03.0 | 10W | 4000K | .30° | available on request |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
401708
Eclipse Medium Square 02
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401708.30.30.01.0 | 19W | 3000K | .30° | 2 x 650 |
RAL9006 |
ON/OFF | ||
| 401708.30.30.02.0 | 19W | 3000K | .30° | 2 x 650 |
RAL7016 |
ON/OFF | ||
| 401708.30.30.03.0 | 19W | 3000K | .30° | 2 x 650 |
RAL9005 BLACK |
ON/OFF | ||
| 401708.40.30.01.0 | 19W | 4000K | .30° | available on request |
RAL9006 |
ON/OFF | ||
| 401708.40.30.02.0 | 19W | 4000K | .30° | available on request |
RAL7016 |
ON/OFF | ||
| 401708.40.30.03.0 | 19W | 4000K | .30° | available on request |
RAL9005 BLACK |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
401706
Eclipse Medium Square
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401706.30.36.01.0 | 14W | 3000K | .36° | 636 |
RAL9006 |
ON/OFF | ||
| 401706.30.36.02.0 | 14W | 3000K | .36° | 636 |
RAL7016 |
ON/OFF | ||
| 401706.30.36.03.0 | 14W | 3000K | .36° | 636 |
RAL9005 BLACK |
ON/OFF | ||
| 401706.40.36.01.0 | 14W | 4000K | .36° | available on request |
RAL9006 |
ON/OFF | ||
| 401706.40.36.02.0 | 14W | 4000K | .36° | available on request |
RAL7016 |
ON/OFF | ||
| 401706.40.36.03.0 | 14W | 4000K | .36° | available on request |
RAL9005 BLACK |
ON/OFF | ||
