Rectangular wall surface-mounted luminaire creating a diffused and discrete light through the fixture perimeter on the wall. Fixture for outdoor installation on a wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, frosted polycarbonate diffuser, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with low-power CREE LED. IP65 rating.
Eclipse
Linear 600
401710
Designed by
PAOLO VILLA

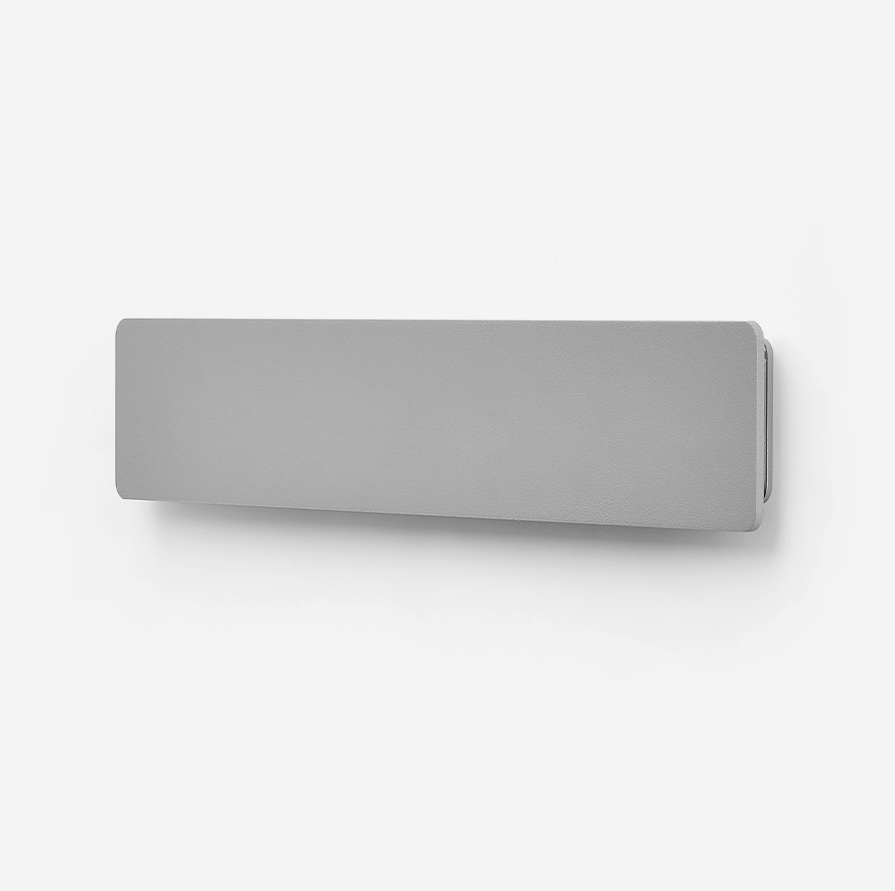

Product IMAGE
Technical drawing
401710
Eclipse Linear 600
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 401710.30.36.01.0 | 24W | 3000K | .36° | 781 |
RAL9006 |
ON/OFF | ||
| 401710.30.36.02.0 | 24W | 3000K | .36° | 781 |
RAL7016 |
ON/OFF | ||
| 401710.30.36.03.0 | 24W | 3000K | .36° | 781 |
RAL9005 BLACK |
ON/OFF | ||
| 401710.40.36.01.0 | 24W | 4000K | .36° | available on request |
RAL9006 |
ON/OFF | ||
| 401710.40.36.02.0 | 24W | 4000K | .36° | available on request |
RAL7016 |
ON/OFF | ||
| 401710.40.36.03.0 | 24W | 4000K | .36° | available on request |
RAL9005 BLACK |
ON/OFF | ||
