installation on a pole diam. 60 mm or 76 mm. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Symmetrical or asymmetrical wide light distribution. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 120 x mid-power SAMSUNG 2835 LED.IP66 rating.

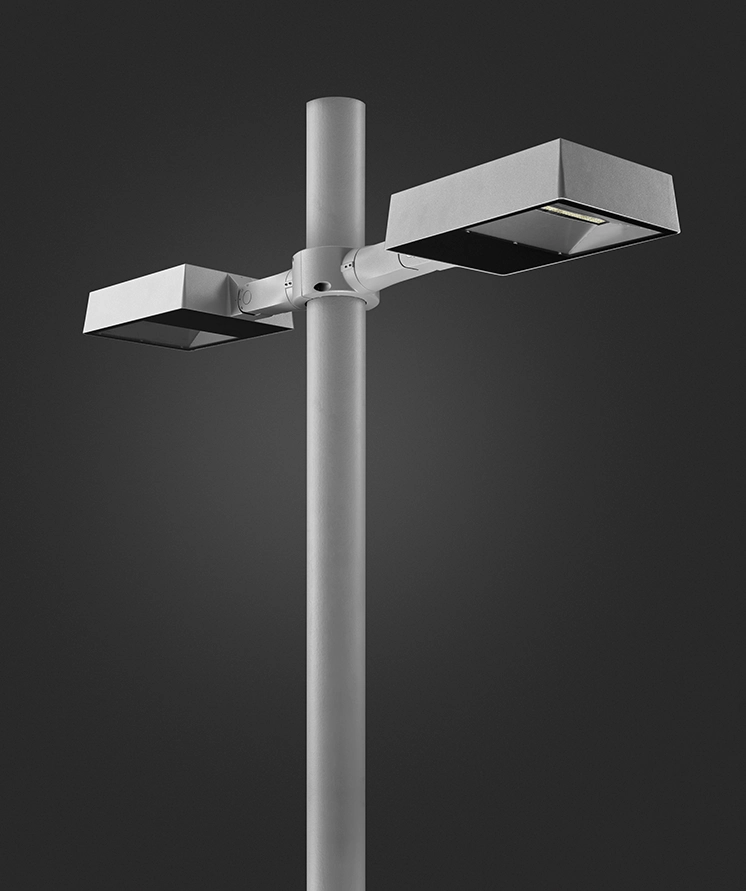

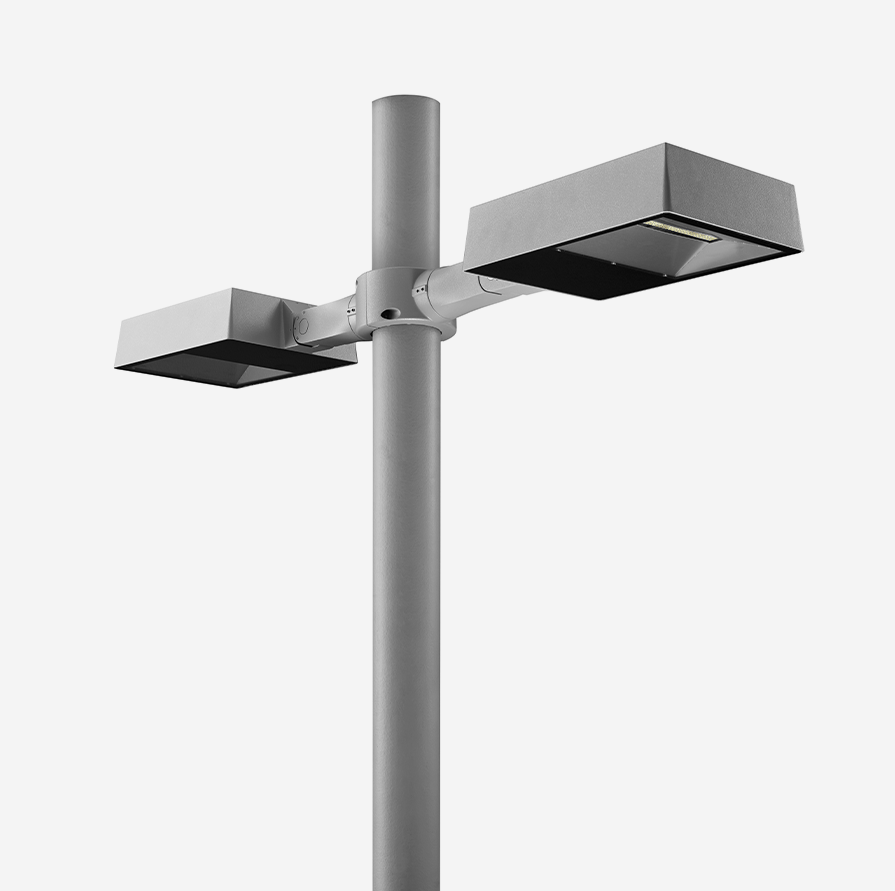

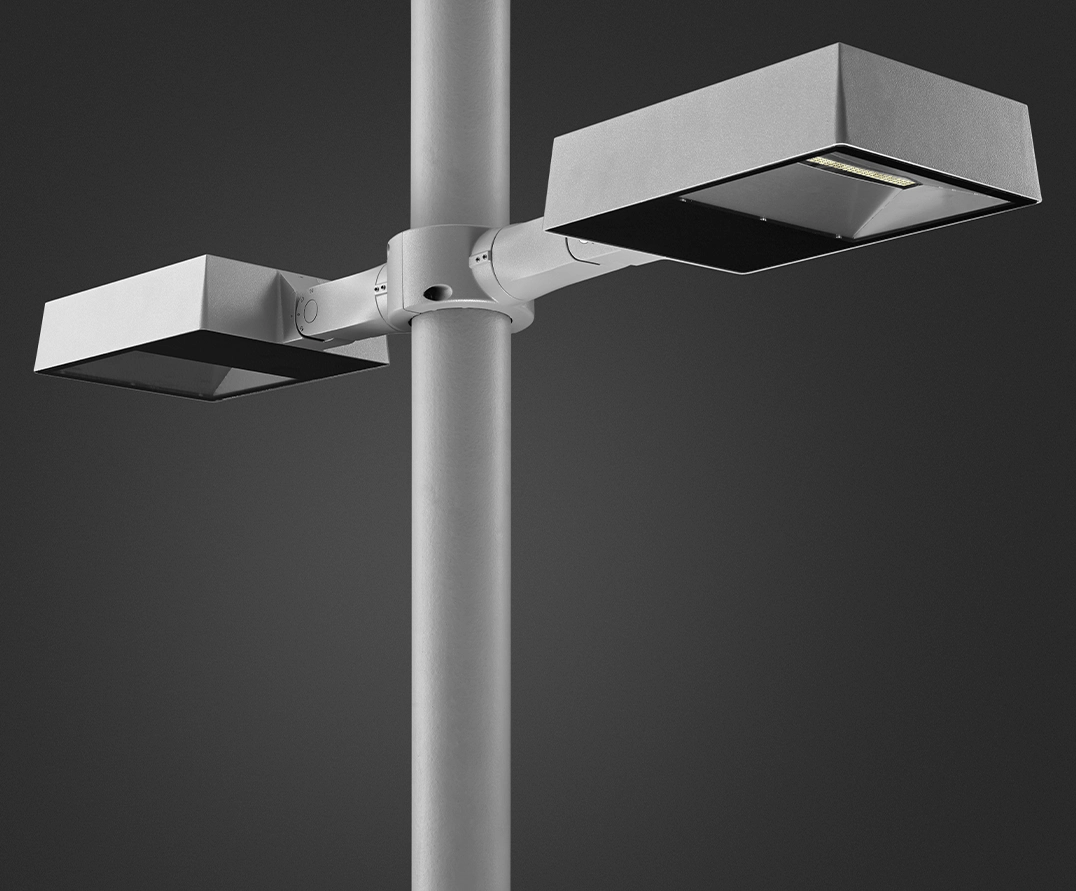

Zeus Pole
Double Maxi
Symm
806011
-
Wattage
2x42W
-
CCT
4000K
-
Beam Angle
.DF
-
Lumens
2 x 3940
-
Finish
RAL7016 -
IP Rating
IP66
-
IK Rating
IK09
-
Coating
Polyester powder coating with phosphocromating pre-finish
-
Light source
120 x mid-power SAMSUNG 2835 LED
-
Screws
Stainless steel
-
Transformer
Electrical power supply 220/240V 50/60Hz built-in
-
Gasket
Silicone rubber
-
Glass
Tempered
-
Cable gland
M16 rubber grommet
-
Power cable
5 mt. Power cable included
-
Gross weight
7,50 Kg
Integrated Accessories
806011.40.DF.02.0. _ _
Built-in accessories to be requested when ordering
example 806011.40.DF.02.0.HC
.00
NO ACCESSORY
No accessory
Accessories not included
Accessories to be ordered separately
809901
CYLINDRICAL POLE 3,5 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. Total height including 500 mm to be buried into the ground. Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809902
CYLINDRICAL POLE 4,5 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. Total height including 500 mm to be buried into the ground. Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809903
CYLINDRICAL POLE 5,5 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. Total height including 500 mm to be buried into the ground. Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809904
CYLINDRICAL POLE 3 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. With base plate dim. 250x250 mm, thickness 10 mm Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809905
CYLINDRICAL POLE 4 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. With base plate dim. 250x250 mm, thickness 10 mm Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809906
CYLINDRICAL POLE 5 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. With base plate dim. 250x250 mm, thickness 10 mm Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809907
ANCHORAGE UNIT FOR BASE-PLATE
Base plate dim. 250x250 mm, thickness 3 mm, made in galvanized steel complete of nr. 4 anchorage threaded bolts
809909
TOP CAP DIAM. 76mm
