Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm, with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings,with screws in stainless steel. Swivel pole joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 1310” LED. IP66 rating.
Ring Pole
Double Mini
807004-10
Designed by
NAVA + AROSIO

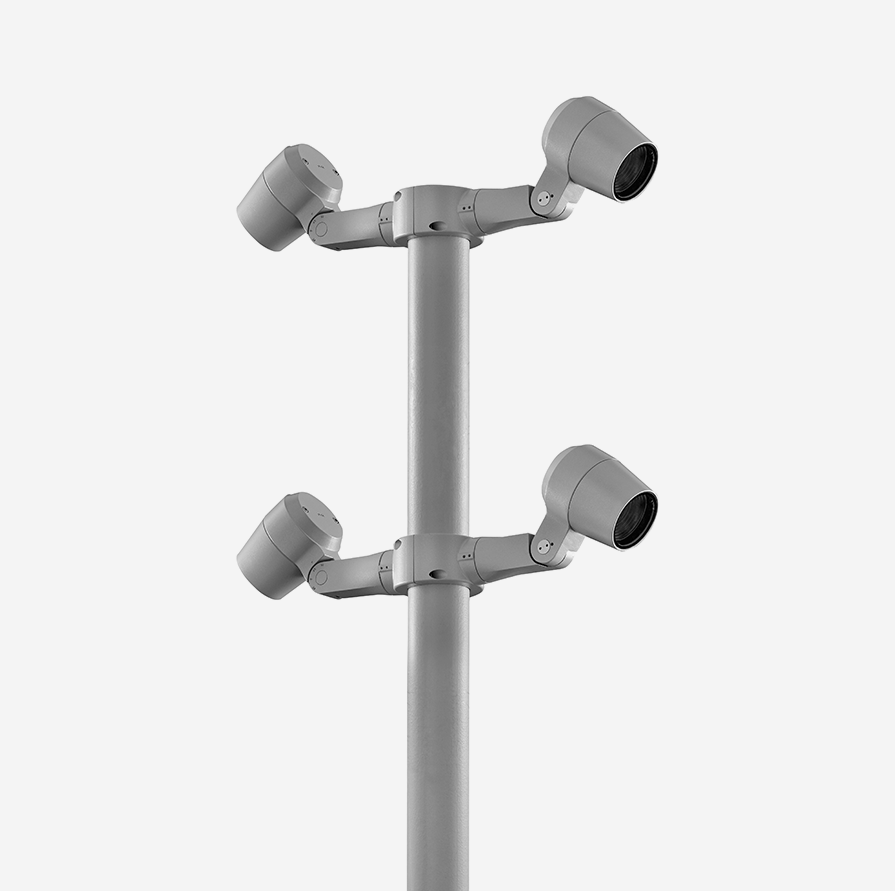

Product IMAGE
Technical drawing
807004
Ring Pole Double Mini
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 807004.27.04.01.0 | 2x10W | 2700K | .04° | 2 x 1045 |
RAL9006 |
ON/OFF | ||
| 807004.27.04.01.D | 2x10W | 2700K | .04° | 2 x 1045 |
RAL9006 |
DALI | ||
| 807004.27.04.02.0 | 2x10W | 2700K | .04° | 2 x 1045 |
RAL7016 |
ON/OFF | ||
| 807004.27.04.02.D | 2x10W | 2700K | .04° | 2 x 1045 |
RAL7016 |
DALI | ||
| 807004.27.04.03.0 | 2x10W | 2700K | .04° | 2 x 1045 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.27.04.03.D | 2x10W | 2700K | .04° | 2 x 1045 |
RAL9005 BLACK |
DALI | ||
| 807004.27.35.01.0 | 2x10W | 2700K | .35° | 2 x 1007 |
RAL9006 |
ON/OFF | ||
| 807004.27.35.01.D | 2x10W | 2700K | .35° | 2 x 1007 |
RAL9006 |
DALI | ||
| 807004.27.35.02.0 | 2x10W | 2700K | .35° | 2 x 1007 |
RAL7016 |
ON/OFF | ||
| 807004.27.35.02.D | 2x10W | 2700K | .35° | 2 x 1007 |
RAL7016 |
DALI | ||
| 807004.27.35.03.0 | 2x10W | 2700K | .35° | 2 x 1007 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.27.35.03.D | 2x10W | 2700K | .35° | 2 x 1007 |
RAL9005 BLACK |
DALI | ||
| 807004.27.55.01.0 | 2x10W | 2700K | .55° | 2 x 950 |
RAL9006 |
ON/OFF | ||
| 807004.27.55.01.D | 2x10W | 2700K | .55° | 2 x 950 |
RAL9006 |
DALI | ||
| 807004.27.55.02.0 | 2x10W | 2700K | .55° | 2 x 950 |
RAL7016 |
ON/OFF | ||
| 807004.27.55.02.D | 2x10W | 2700K | .55° | 2 x 950 |
RAL7016 |
DALI | ||
| 807004.27.55.03.0 | 2x10W | 2700K | .55° | 2 x 950 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.27.55.03.D | 2x10W | 2700K | .55° | 2 x 950 |
RAL9005 BLACK |
DALI | ||
| 807004.30.04.01.0 | 2x10W | 3000K | .04° | 2 x 1100 |
RAL9006 |
ON/OFF | ||
| 807004.30.04.01.D | 2x10W | 3000K | .04° | 2 x 1100 |
RAL9006 |
DALI | ||
| 807004.30.04.02.0 | 2x10W | 3000K | .04° | 2 x 1100 |
RAL7016 |
ON/OFF | ||
| 807004.30.04.02.D | 2x10W | 3000K | .04° | 2 x 1100 |
RAL7016 |
DALI | ||
| 807004.30.04.03.0 | 2x10W | 3000K | .04° | 2 x 1100 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.30.04.03.D | 2x10W | 3000K | .04° | 2 x 1100 |
RAL9005 BLACK |
DALI | ||
| 807004.30.35.01.0 | 2x10W | 3000K | .35° | 2 x 1060 |
RAL9006 |
ON/OFF | ||
| 807004.30.35.01.D | 2x10W | 3000K | .35° | 2 x 1060 |
RAL9006 |
DALI | ||
| 807004.30.35.02.0 | 2x10W | 3000K | .35° | 2 x 1060 |
RAL7016 |
ON/OFF | ||
| 807004.30.35.02.D | 2x10W | 3000K | .35° | 2 x 1060 |
RAL7016 |
DALI | ||
| 807004.30.35.03.0 | 2x10W | 3000K | .35° | 2 x 1060 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.30.35.03.D | 2x10W | 3000K | .35° | 2 x 1060 |
RAL9005 BLACK |
DALI | ||
| 807004.30.55.01.0 | 2x10W | 3000K | .55° | 2 x 1000 |
RAL9006 |
ON/OFF | ||
| 807004.30.55.01.D | 2x10W | 3000K | .55° | 2 x 1000 |
RAL9006 |
DALI | ||
| 807004.30.55.02.0 | 2x10W | 3000K | .55° | 2 x 1000 |
RAL7016 |
ON/OFF | ||
| 807004.30.55.02.D | 2x10W | 3000K | .55° | 2 x 1000 |
RAL7016 |
DALI | ||
| 807004.30.55.03.0 | 2x10W | 3000K | .55° | 2 x 1000 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.30.55.03.D | 2x10W | 3000K | .55° | 2 x 1000 |
RAL9005 BLACK |
DALI | ||
| 807004.40.04.01.0 | 2x10W | 4000K | .04° | 2 x 1200 |
RAL9006 |
ON/OFF | ||
| 807004.40.04.01.D | 2x10W | 4000K | .04° | 2 x 1200 |
RAL9006 |
DALI | ||
| 807004.40.04.02.0 | 2x10W | 4000K | .04° | 2 x 1200 |
RAL7016 |
ON/OFF | ||
| 807004.40.04.02.D | 2x10W | 4000K | .04° | 2 x 1200 |
RAL7016 |
DALI | ||
| 807004.40.04.03.0 | 2x10W | 4000K | .04° | 2 x 1200 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.40.04.03.D | 2x10W | 4000K | .04° | 2 x 1200 |
RAL9005 BLACK |
DALI | ||
| 807004.40.35.01.0 | 2x10W | 4000K | .35° | 2 x 1140 |
RAL9006 |
ON/OFF | ||
| 807004.40.35.01.D | 2x10W | 4000K | .35° | 2 x 1140 |
RAL9006 |
DALI | ||
| 807004.40.35.02.0 | 2x10W | 4000K | .35° | 2 x 1140 |
RAL7016 |
ON/OFF | ||
| 807004.40.35.02.D | 2x10W | 4000K | .35° | 2 x 1140 |
RAL7016 |
DALI | ||
| 807004.40.35.03.0 | 2x10W | 4000K | .35° | 2 x 1140 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.40.35.03.D | 2x10W | 4000K | .35° | 2 x 1140 |
RAL9005 BLACK |
DALI | ||
| 807004.40.55.01.0 | 2x10W | 4000K | .55° | 2 x 1083 |
RAL9006 |
ON/OFF | ||
| 807004.40.55.01.D | 2x10W | 4000K | .55° | 2 x 1083 |
RAL9006 |
DALI | ||
| 807004.40.55.02.0 | 2x10W | 4000K | .55° | 2 x 1083 |
RAL7016 |
ON/OFF | ||
| 807004.40.55.02.D | 2x10W | 4000K | .55° | 2 x 1083 |
RAL7016 |
DALI | ||
| 807004.40.55.03.0 | 2x10W | 4000K | .55° | 2 x 1083 |
RAL9005 BLACK |
ON/OFF | ||
| 807004.40.55.03.D | 2x10W | 4000K | .55° | 2 x 1083 |
RAL9005 BLACK |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
807010
Ring Pole Double Mini Hp
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 807010.27.04.01.0 | 2x8W | 2700K | .04° | 2 x 656 |
RAL9006 |
ON/OFF | ||
| 807010.27.04.01.D | 2x8W | 2700K | .04° | 2 x 656 |
RAL9006 |
DALI | ||
| 807010.27.04.02.0 | 2x8W | 2700K | .04° | 2 x 656 |
RAL7016 |
ON/OFF | ||
| 807010.27.04.02.D | 2x8W | 2700K | .04° | 2 x 656 |
RAL7016 |
DALI | ||
| 807010.27.04.03.0 | 2x8W | 2700K | .04° | 2 x 656 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.27.04.03.D | 2x8W | 2700K | .04° | 2 x 656 |
RAL9005 BLACK |
DALI | ||
| 807010.27.08.01.0 | 2x8W | 2700K | .08° | 2 x 610 |
RAL9006 |
ON/OFF | ||
| 807010.27.08.01.D | 2x8W | 2700K | .08° | 2 x 610 |
RAL9006 |
DALI | ||
| 807010.27.08.02.0 | 2x8W | 2700K | .08° | 2 x 610 |
RAL7016 |
ON/OFF | ||
| 807010.27.08.02.D | 2x8W | 2700K | .08° | 2 x 610 |
RAL7016 |
DALI | ||
| 807010.27.08.03.0 | 2x8W | 2700K | .08° | 2 x 610 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.27.08.03.D | 2x8W | 2700K | .08° | 2 x 610 |
RAL9005 BLACK |
DALI | ||
| 807010.27.10.01.0 | 2x8W | 2700K | .10° | 2 x 629 |
RAL9006 |
ON/OFF | ||
| 807010.27.10.01.D | 2x8W | 2700K | .10° | 2 x 629 |
RAL9006 |
DALI | ||
| 807010.27.10.02.0 | 2x8W | 2700K | .10° | 2 x 629 |
RAL7016 |
ON/OFF | ||
| 807010.27.10.02.D | 2x8W | 2700K | .10° | 2 x 629 |
RAL7016 |
DALI | ||
| 807010.27.10.03.0 | 2x8W | 2700K | .10° | 2 x 629 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.27.10.03.D | 2x8W | 2700K | .10° | 2 x 629 |
RAL9005 BLACK |
DALI | ||
| 807010.27.55.01.0 | 2x8W | 2700K | .55° | 2 x 519 |
RAL9006 |
ON/OFF | ||
| 807010.27.55.01.D | 2x8W | 2700K | .55° | 2 x 519 |
RAL9006 |
DALI | ||
| 807010.27.55.02.0 | 2x8W | 2700K | .55° | 2 x 519 |
RAL7016 |
ON/OFF | ||
| 807010.27.55.02.D | 2x8W | 2700K | .55° | 2 x 519 |
RAL7016 |
DALI | ||
| 807010.27.55.03.0 | 2x8W | 2700K | .55° | 2 x 519 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.27.55.03.D | 2x8W | 2700K | .55° | 2 x 519 |
RAL9005 BLACK |
DALI | ||
| 807010.30.04.01.0 | 2x8W | 3000K | .04° | 2 x 690 |
RAL9006 |
ON/OFF | ||
| 807010.30.04.01.D | 2x8W | 3000K | .04° | 2 x 690 |
RAL9006 |
DALI | ||
| 807010.30.04.02.0 | 2x8W | 3000K | .04° | 2 x 690 |
RAL7016 |
ON/OFF | ||
| 807010.30.04.02.D | 2x8W | 3000K | .04° | 2 x 690 |
RAL7016 |
DALI | ||
| 807010.30.04.03.0 | 2x8W | 3000K | .04° | 2 x 690 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.30.04.03.D | 2x8W | 3000K | .04° | 2 x 690 |
RAL9005 BLACK |
DALI | ||
| 807010.30.08.01.0 | 2x8W | 3000K | .08° | 2 x 642 |
RAL9006 |
ON/OFF | ||
| 807010.30.08.01.D | 2x8W | 3000K | .08° | 2 x 642 |
RAL9006 |
DALI | ||
| 807010.30.08.02.0 | 2x8W | 3000K | .08° | 2 x 642 |
RAL7016 |
ON/OFF | ||
| 807010.30.08.02.D | 2x8W | 3000K | .08° | 2 x 642 |
RAL7016 |
DALI | ||
| 807010.30.08.03.0 | 2x8W | 3000K | .08° | 2 x 642 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.30.08.03.D | 2x8W | 3000K | .08° | 2 x 642 |
RAL9005 BLACK |
DALI | ||
| 807010.30.10.01.0 | 2x8W | 3000K | .10° | 2 x 662 |
RAL9006 |
ON/OFF | ||
| 807010.30.10.01.D | 2x8W | 3000K | .10° | 2 x 662 |
RAL9006 |
DALI | ||
| 807010.30.10.02.0 | 2x8W | 3000K | .10° | 2 x 662 |
RAL7016 |
ON/OFF | ||
| 807010.30.10.02.D | 2x8W | 3000K | .10° | 2 x 662 |
RAL7016 |
DALI | ||
| 807010.30.10.03.0 | 2x8W | 3000K | .10° | 2 x 662 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.30.10.03.D | 2x8W | 3000K | .10° | 2 x 662 |
RAL9005 BLACK |
DALI | ||
| 807010.30.55.01.0 | 2x8W | 3000K | .55° | 2 x 546 |
RAL9006 |
ON/OFF | ||
| 807010.30.55.01.D | 2x8W | 3000K | .55° | 2 x 546 |
RAL9006 |
DALI | ||
| 807010.30.55.02.0 | 2x8W | 3000K | .55° | 2 x 546 |
RAL7016 |
ON/OFF | ||
| 807010.30.55.02.D | 2x8W | 3000K | .55° | 2 x 546 |
RAL7016 |
DALI | ||
| 807010.30.55.03.0 | 2x8W | 3000K | .55° | 2 x 546 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.30.55.03.D | 2x8W | 3000K | .55° | 2 x 546 |
RAL9005 BLACK |
DALI | ||
| 807010.40.04.01.0 | 2x8W | 4000K | .04° | 2 x 703 |
RAL9006 |
ON/OFF | ||
| 807010.40.04.01.D | 2x8W | 4000K | .04° | 2 x 703 |
RAL9006 |
DALI | ||
| 807010.40.04.02.0 | 2x8W | 4000K | .04° | 2 x 703 |
RAL7016 |
ON/OFF | ||
| 807010.40.04.02.D | 2x8W | 4000K | .04° | 2 x 703 |
RAL7016 |
DALI | ||
| 807010.40.04.03.0 | 2x8W | 4000K | .04° | 2 x 703 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.40.04.03.D | 2x8W | 4000K | .04° | 2 x 703 |
RAL9005 BLACK |
DALI | ||
| 807010.40.08.01.0 | 2x8W | 4000K | .08° | 2 x 656 |
RAL9006 |
ON/OFF | ||
| 807010.40.08.01.D | 2x8W | 4000K | .08° | 2 x 656 |
RAL9006 |
DALI | ||
| 807010.40.08.02.0 | 2x8W | 4000K | .08° | 2 x 656 |
RAL7016 |
ON/OFF | ||
| 807010.40.08.02.D | 2x8W | 4000K | .08° | 2 x 656 |
RAL7016 |
DALI | ||
| 807010.40.08.03.0 | 2x8W | 4000K | .08° | 2 x 656 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.40.08.03.D | 2x8W | 4000K | .08° | 2 x 656 |
RAL9005 BLACK |
DALI | ||
| 807010.40.10.01.0 | 2x8W | 4000K | .10° | 2 x 676 |
RAL9006 |
ON/OFF | ||
| 807010.40.10.01.D | 2x8W | 4000K | .10° | 2 x 676 |
RAL9006 |
DALI | ||
| 807010.40.10.02.0 | 2x8W | 4000K | .10° | 2 x 676 |
RAL7016 |
ON/OFF | ||
| 807010.40.10.02.D | 2x8W | 4000K | .10° | 2 x 676 |
RAL7016 |
DALI | ||
| 807010.40.10.03.0 | 2x8W | 4000K | .10° | 2 x 676 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.40.10.03.D | 2x8W | 4000K | .10° | 2 x 676 |
RAL9005 BLACK |
DALI | ||
| 807010.40.55.01.0 | 2x8W | 4000K | .55° | 2 x 558 |
RAL9006 |
ON/OFF | ||
| 807010.40.55.01.D | 2x8W | 4000K | .55° | 2 x 558 |
RAL9006 |
DALI | ||
| 807010.40.55.02.0 | 2x8W | 4000K | .55° | 2 x 558 |
RAL7016 |
ON/OFF | ||
| 807010.40.55.02.D | 2x8W | 4000K | .55° | 2 x 558 |
RAL7016 |
DALI | ||
| 807010.40.55.03.0 | 2x8W | 4000K | .55° | 2 x 558 |
RAL9005 BLACK |
ON/OFF | ||
| 807010.40.55.03.D | 2x8W | 4000K | .55° | 2 x 558 |
RAL9005 BLACK |
DALI | ||
