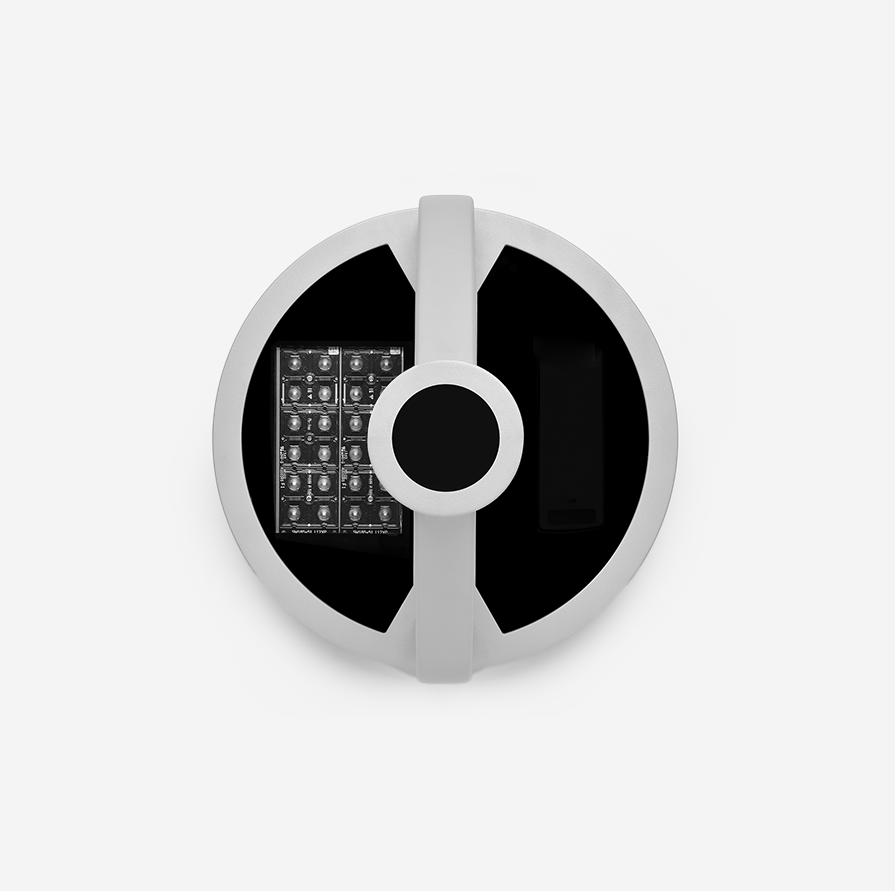

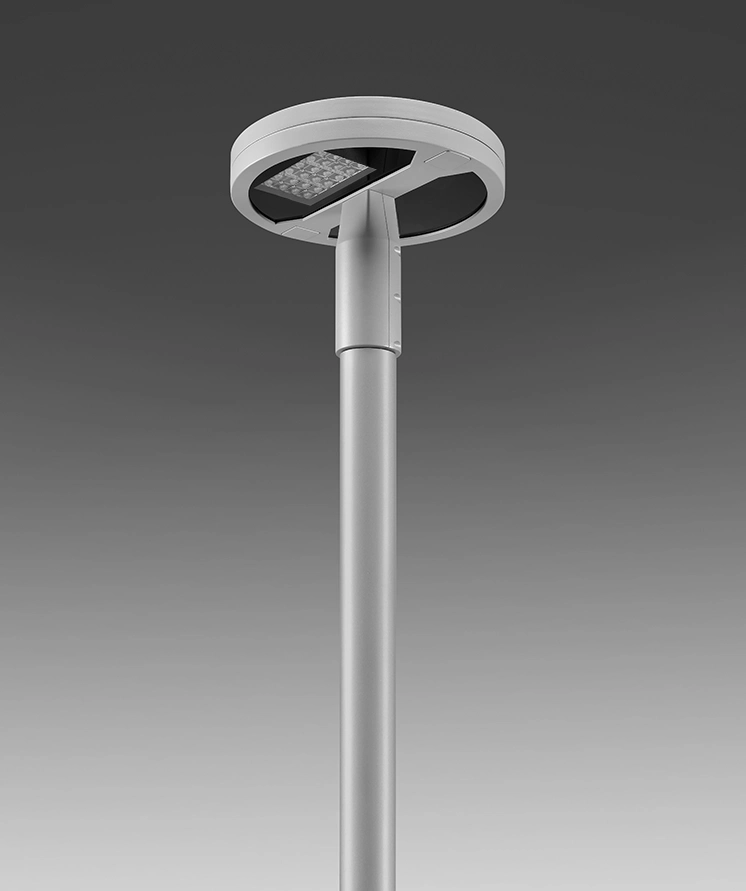

Round pole-top mounted luminaire for outdoor installation on a central pole. Built-in LED drivers, with 24 x CREE XP-G3 LED (24+0). IP66 rating.
City
03
24+0
802010
-
Wattage
36W
-
CCT
3000K
-
Beam Angle
.CP
-
Lumens
3456
-
Finish
RAL9006 -
IP Rating
IP66
-
IK Rating
IK09
-
Coating
Polyester powder coating with phosphocromating pre-finish
-
Light source
NR. 24 x 1.5W CREE XP-G3 LED
-
Screws
Stainless steel
-
Transformer
Electronic transformer 220/240V 50/60Hz included
-
Gasket
Silicone rubber
-
Glass
Tempered
-
Power cable
5 mt. neoprene power cable included
-
Gross weight
6,10 Kg
Integrated Accessories
802010.30.CP.01.1. _ _
Built-in accessories to be requested when ordering
example 802010.30.CP.01.1.HC
.00
NO ACCESSORY
No accessory
Accessories not included
Accessories to be ordered separately
809901
CYLINDRICAL POLE 3,5 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. Total height including 500 mm to be buried into the ground. Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809902
CYLINDRICAL POLE 4,5 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. Total height including 500 mm to be buried into the ground. Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809903
CYLINDRICAL POLE 5,5 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. Total height including 500 mm to be buried into the ground. Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809904
CYLINDRICAL POLE 3 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. With base plate dim. 250x250 mm, thickness 10 mm Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809905
CYLINDRICAL POLE 4 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. With base plate dim. 250x250 mm, thickness 10 mm Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809906
CYLINDRICAL POLE 5 METERS
Cylindrical pole made in steel S235JR (UNI EN 10219) hot galvanized (UNI EN 1461), diameter 76 mm, thickness 4 mm. Phospho-chromatised and polyester powder coated. With base plate dim. 250x250 mm, thickness 10 mm Includes IP54 cover plate 132x38 mm and terminal block in double insulation.
809907
ANCHORAGE UNIT FOR BASE-PLATE
Base plate dim. 250x250 mm, thickness 3 mm, made in galvanized steel complete of nr. 4 anchorage threaded bolts
809908
ADAPTER DIAM. 76mm --> 60mm
Adapter for pole diam. 76 mm, allow the diameter reduction to 60 mm
Light Distribution
