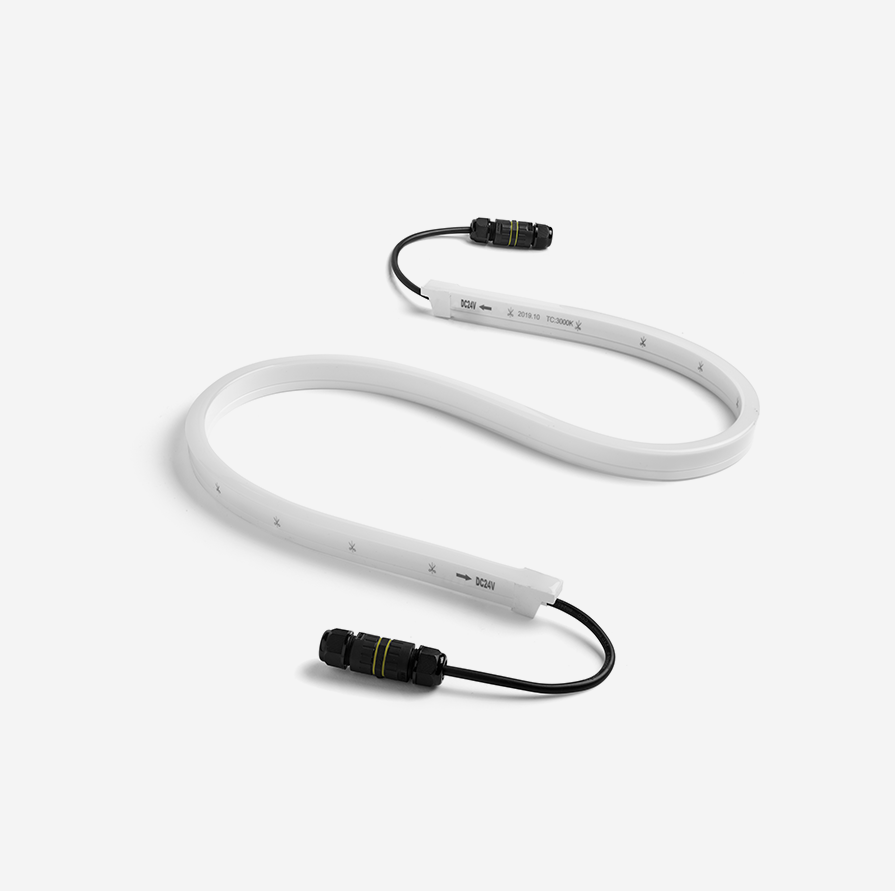

1.000 mm length, 20mm x 12mm section, opal encapsulated flexible LED strip for linear lighting (straight or bended) outdoor and indoor wall-recessed installation; surface mounted version through installation accessories to be ordered separately. LED circuit completely encapsulated with UV and high-temperatures resistant Polyurethane sheath, with white (outside) and milky finish (over light emission), dot free and homogeneous light emission surface. Double power cable with male/ female connectors included, suitable for in-line installation. Remote driver 24V DC needed. With nr. 140 low-power SMD3014 Lumileds LED. IP68 rating.
Hydroflex Underwater
Side
1000
306001
-
Wattage
10W
-
CCT
3000K
-
Beam Angle
.DF
-
Lumens
750
-
Finish
NO FINISH -
IP Rating
IP68
-
Coating
Polyester powder coating with phosphocromating pre-finish
-
Light source
1 x LUMENS EDC 38C COB LED
-
Screws
Stainless steel
-
Transformer
24V DC remote driver needed
-
Power cable
Supplied with Male/Female connectors for in-line installation
REMOTE DRIVER SELECTION
| Meanwell | LPV-20-24 | constant voltage 24V DC | 20W | IP67 | 1 |
| Meanwell | LPV-35-24 | constant voltage 24V DC | 35W | IP67 | min 1 - max 2 |
| Meanwell | LPV-60-24 | constant voltage 24V DC | 60W | IP67 | min 1 - max 5 |
| Meanwell | LPV-100-24 | constant voltage 24V DC | 100W | IP67 | min 1 - max 9 |
Integrated Accessories
306001.30.DF.00.0. _ _
Built-in accessories to be requested when ordering
example 306001.30.DF.00.0.HC
.00
NO ACCESSORY
No accessory
Accessories not included
Accessories to be ordered separately

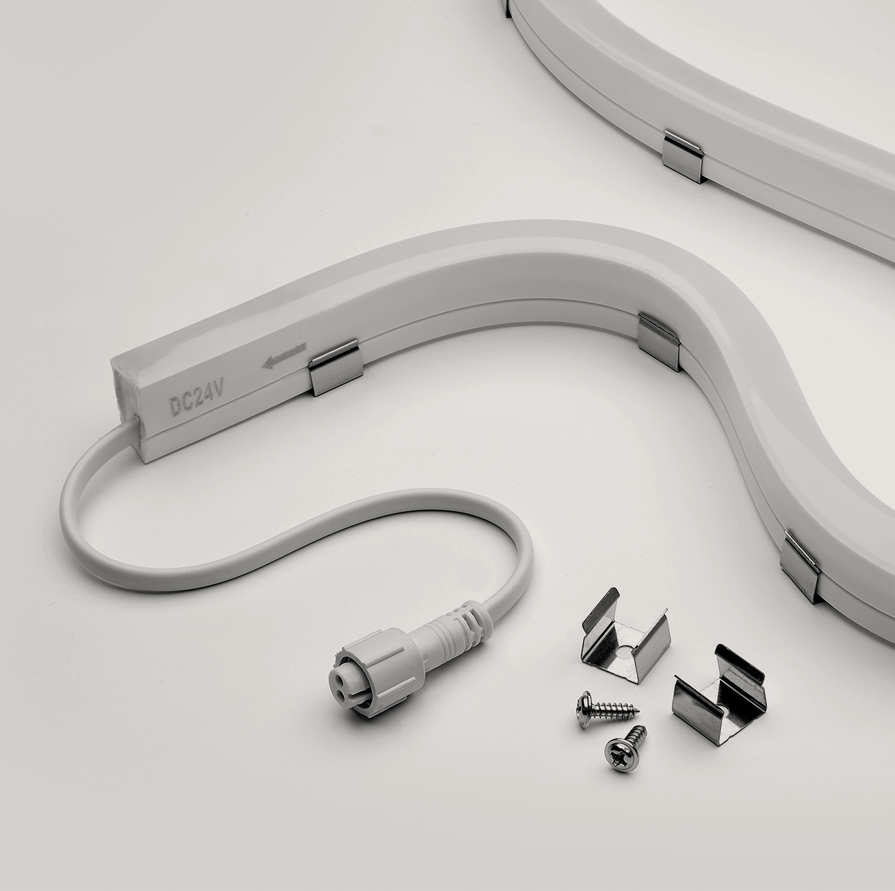

AC031
MOUNTING CLIP FOR HYDROFLEX SIDE
Mounting clip for Hydroflex Side realized in Stainless steel, clip to be applied every 40 cm, to secure with screws. Ideal for bended installation on a wall or ceiling.

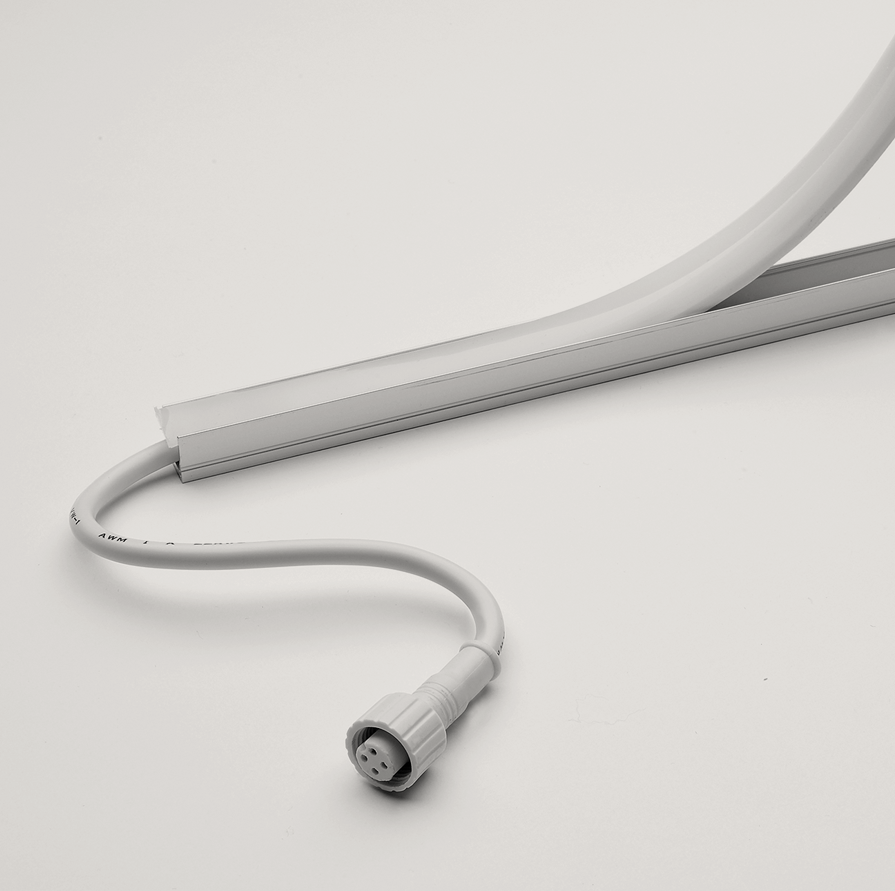

AC032
ALUMINUM LINEAR PROFILE (AC032)
1.000 mm Linear profile for Hydroflex Side, realized in Anodized aluminum.
