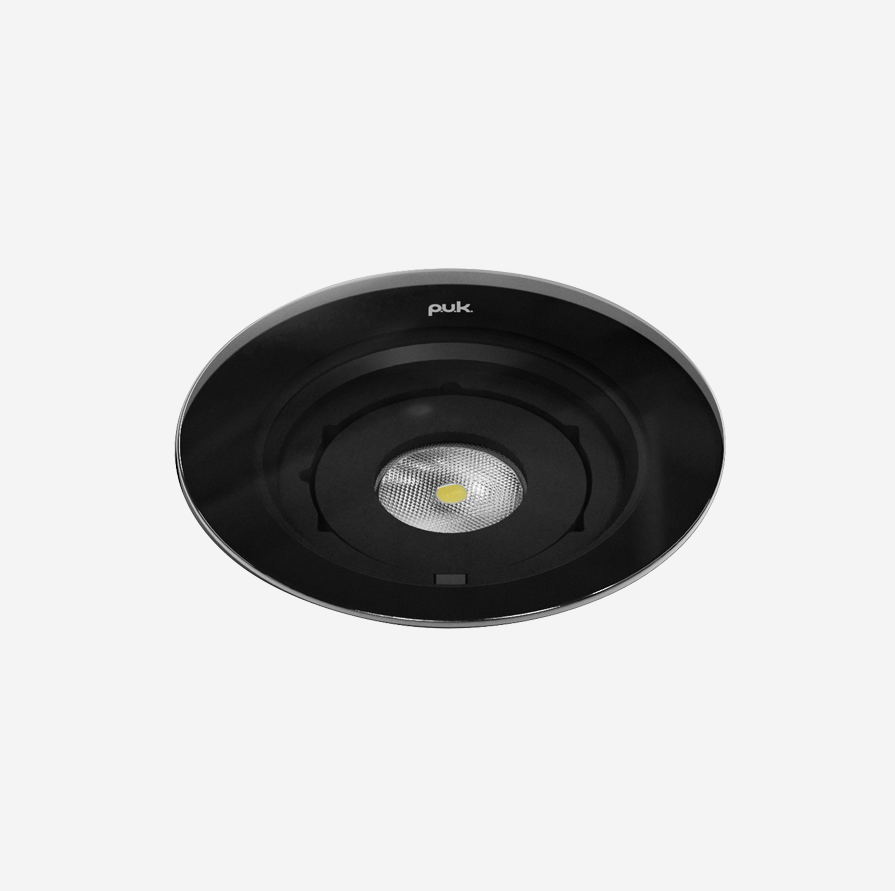

Diameter 130mm ground-recessed luminaire for outdoor installation, phosphochromatised and polyester powder coated die-cast copper-free aluminium body,tempered safety glass, moulded silicone gasket. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-240V 50-60Hz, with 1 CREE “XHP35” LED. IP67 rating.
Terra
Mini
Trimless Hp
207008
-
Wattage
8W
-
CCT
3000K
-
Beam Angle
.10°
-
Lumens
662
-
Finish
CLEAR GLASS -
IP Rating
IP67
-
IK Rating
IK10
-
Coating
polyester powder coating with phosphocromating pre-finish
-
Light source
Nr. 1 CREE XHP35 LED
-
Screws
Stainless steel
-
Transformer
Electrical power supply 220/240V 50/60Hz built in
-
Gasket
Silicone rubber
-
Glass
Tempered
-
Cable gland
M20
-
Power cable
1 mt. neoprene power cable included
-
Gross weight
2,70 Kg
Integrated Accessories
207008.30.10.GL.D. _ _
Built-in accessories to be requested when ordering
example 207008.30.10.GL.D.HC
.00
NO ACCESSORY
No accessory
.HC
HONEYCOMB LOUVER FOR TERRA MINI
GLARE SHIELD FOR TERRA MINI
Glare shield accessory made in hard anodized black aluminum, for applications requiring very reduced glaring; minimal light loss on the light surface but overall lumen output typically reduced by 50%.
