Terra
Mini
207001-10

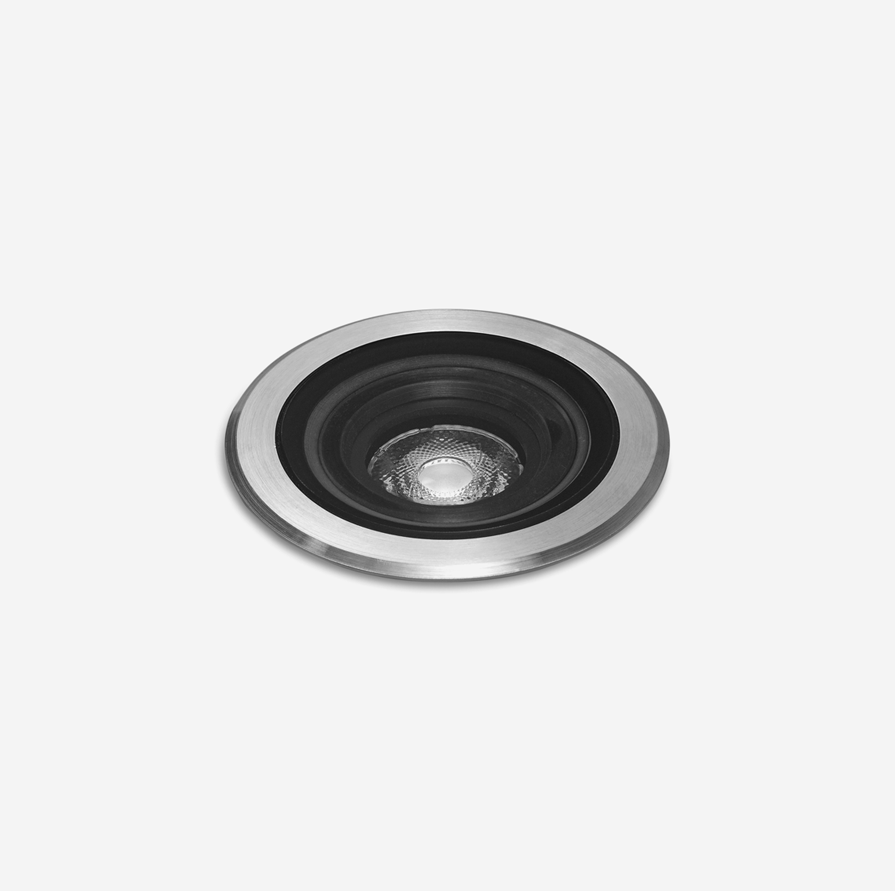

Product IMAGE
Technical drawing
207001
Terra Mini Cob
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207001.27.08.SS.0 | 8W | 2700K | .08° | 600 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.27.08.SS.D | 8W | 2700K | .08° | 600 |
STAINLESS STEEL |
DALI | ||
| 207001.27.36.SS.0 | 8W | 2700K | .36° | 580 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.27.36.SS.D | 8W | 2700K | .36° | 580 |
STAINLESS STEEL |
DALI | ||
| 207001.27.60.SS.0 | 8W | 2700K | .60° | 560 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.27.60.SS.D | 8W | 2700K | .60° | 560 |
STAINLESS STEEL |
DALI | ||
| 207001.30.08.SS.0 | 8W | 3000K | .08° | 620 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.30.08.SS.D | 8W | 3000K | .08° | 620 |
STAINLESS STEEL |
DALI | ||
| 207001.30.36.SS.0 | 8W | 3000K | .36° | 600 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.30.36.SS.D | 8W | 3000K | .36° | 600 |
STAINLESS STEEL |
DALI | ||
| 207001.30.60.SS.0 | 8W | 3000K | .60° | 580 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.30.60.SS.D | 8W | 3000K | .60° | 580 |
STAINLESS STEEL |
DALI | ||
| 207001.40.08.SS.0 | 8W | 4000K | .08° | 640 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.40.08.SS.D | 8W | 4000K | .08° | 640 |
STAINLESS STEEL |
DALI | ||
| 207001.40.36.SS.0 | 8W | 4000K | .36° | 620 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.40.36.SS.D | 8W | 4000K | .36° | 620 |
STAINLESS STEEL |
DALI | ||
| 207001.40.60.SS.0 | 8W | 4000K | .60° | 600 |
STAINLESS STEEL |
ON/OFF | ||
| 207001.40.60.SS.D | 8W | 4000K | .60° | 600 |
STAINLESS STEEL |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207002
Terra Mini Hp
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207002.27.04.SS.0 | 8W | 2700K | .04° | 670 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.27.04.SS.D | 8W | 2700K | .04° | 670 |
STAINLESS STEEL |
DALI | ||
| 207002.27.08.SS.0 | 8W | 2700K | .08° | 622 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.27.08.SS.D | 8W | 2700K | .08° | 622 |
STAINLESS STEEL |
DALI | ||
| 207002.27.10.SS.0 | 8W | 2700K | .10° | 642 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.27.10.SS.D | 8W | 2700K | .10° | 642 |
STAINLESS STEEL |
DALI | ||
| 207002.27.55.SS.0 | 8W | 2700K | .55° | 529 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.27.55.SS.D | 8W | 2700K | .55° | 529 |
STAINLESS STEEL |
DALI | ||
| 207002.30.04.SS.0 | 8W | 3000K | .04° | 690 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.30.04.SS.D | 8W | 3000K | .04° | 690 |
STAINLESS STEEL |
DALI | ||
| 207002.30.08.SS.0 | 8W | 3000K | .08° | 642 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.30.08.SS.D | 8W | 3000K | .08° | 642 |
STAINLESS STEEL |
DALI | ||
| 207002.30.10.SS.0 | 8W | 3000K | .10° | 662 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.30.10.SS.D | 8W | 3000K | .10° | 662 |
STAINLESS STEEL |
DALI | ||
| 207002.30.55.SS.0 | 8W | 3000K | .55° | 546 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.30.55.SS.D | 8W | 3000K | .55° | 546 |
STAINLESS STEEL |
DALI | ||
| 207002.40.04.SS.0 | 8W | 4000K | .04° | 703 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.40.04.SS.D | 8W | 4000K | .04° | 703 |
STAINLESS STEEL |
DALI | ||
| 207002.40.08.SS.0 | 8W | 4000K | .08° | 656 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.40.08.SS.D | 8W | 4000K | .08° | 656 |
STAINLESS STEEL |
DALI | ||
| 207002.40.10.SS.0 | 8W | 4000K | .10° | 676 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.40.10.SS.D | 8W | 4000K | .10° | 676 |
STAINLESS STEEL |
DALI | ||
| 207002.40.55.SS.0 | 8W | 4000K | .55° | 558 |
STAINLESS STEEL |
ON/OFF | ||
| 207002.40.55.SS.D | 8W | 4000K | .55° | 558 |
STAINLESS STEEL |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207003
Terra Mini Hp Dmx Rgbw
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207003.RW.12.SS.D | 4.5W | RGBW | .12° | 160 |
STAINLESS STEEL |
DALI | ||
| 207003.RW.12.SS.X | 4.5W | RGBW | .12° | 160 |
STAINLESS STEEL |
DMX | ||
| 207003.RW.25.SS.D | 4.5W | RGBW | .25° | 152 |
STAINLESS STEEL |
DALI | ||
| 207003.RW.25.SS.X | 4.5W | RGBW | .25° | 152 |
STAINLESS STEEL |
DMX | ||
| 207003.RW.35.SS.D | 4.5W | RGBW | .35° | 145 |
STAINLESS STEEL |
DALI | ||
| 207003.RW.35.SS.X | 4.5W | RGBW | .35° | 145 |
STAINLESS STEEL |
DMX | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207004
Terra Mini Diffused
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207004.27.DF.SS.0 | 6W | 2700K | .DF | 100 |
STAINLESS STEEL |
ON/OFF | ||
| 207004.27.DF.SS.D | 6W | 2700K | .DF | 100 |
STAINLESS STEEL |
DALI | ||
| 207004.30.DF.SS.0 | 6W | 3000K | .DF | 110 |
STAINLESS STEEL |
ON/OFF | ||
| 207004.30.DF.SS.D | 6W | 3000K | .DF | 110 |
STAINLESS STEEL |
DALI | ||
| 207004.40.DF.SS.0 | 6W | 4000K | .DF | 120 |
STAINLESS STEEL |
ON/OFF | ||
| 207004.40.DF.SS.D | 6W | 4000K | .DF | 120 |
STAINLESS STEEL |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207005
Terra Mini Wall-Washer
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207005.27.WW.SS.0 | 6W | 2700K | .WW | 450 |
STAINLESS STEEL |
ON/OFF | ||
| 207005.27.WW.SS.D | 6W | 2700K | .WW | 450 |
STAINLESS STEEL |
DALI | ||
| 207005.30.WW.SS.0 | 6W | 3000K | .WW | 470 |
STAINLESS STEEL |
ON/OFF | ||
| 207005.30.WW.SS.D | 6W | 3000K | .WW | 470 |
STAINLESS STEEL |
DALI | ||
| 207005.40.WW.SS.0 | 6W | 4000K | .WW | 490 |
STAINLESS STEEL |
ON/OFF | ||
| 207005.40.WW.SS.D | 6W | 4000K | .WW | 490 |
STAINLESS STEEL |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207006
Terra Mini Blade
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207006.27.BL.SS.0 | 8W | 2700K | .BL | 560 |
STAINLESS STEEL |
ON/OFF | ||
| 207006.27.BL.SS.D | 8W | 2700K | .BL | 560 |
STAINLESS STEEL |
DALI | ||
| 207006.30.BL.SS.0 | 8W | 3000K | .BL | 582 |
STAINLESS STEEL |
ON/OFF | ||
| 207006.30.BL.SS.D | 8W | 3000K | .BL | 582 |
STAINLESS STEEL |
DALI | ||
| 207006.40.BL.SS.0 | 8W | 4000K | .BL | 600 |
STAINLESS STEEL |
ON/OFF | ||
| 207006.40.BL.SS.D | 8W | 4000K | .BL | 600 |
STAINLESS STEEL |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207007
Terra Mini Trimless Cob
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207007.27.08.GL.0 | 8W | 2700K | .08° | 600 |
CLEAR GLASS |
ON/OFF | ||
| 207007.27.08.GL.D | 8W | 2700K | .08° | 600 |
CLEAR GLASS |
DALI | ||
| 207007.27.36.GL.0 | 8W | 2700K | .36° | 580 |
CLEAR GLASS |
ON/OFF | ||
| 207007.27.36.GL.D | 8W | 2700K | .36° | 580 |
CLEAR GLASS |
DALI | ||
| 207007.27.60.GL.0 | 8W | 2700K | .60° | 560 |
CLEAR GLASS |
ON/OFF | ||
| 207007.27.60.GL.D | 8W | 2700K | .60° | 560 |
CLEAR GLASS |
DALI | ||
| 207007.30.08.GL.0 | 8W | 3000K | .08° | 620 |
CLEAR GLASS |
ON/OFF | ||
| 207007.30.08.GL.D | 8W | 3000K | .08° | 620 |
CLEAR GLASS |
DALI | ||
| 207007.30.36.GL.0 | 8W | 3000K | .36° | 600 |
CLEAR GLASS |
ON/OFF | ||
| 207007.30.36.GL.D | 8W | 3000K | .36° | 600 |
CLEAR GLASS |
DALI | ||
| 207007.30.60.GL.0 | 8W | 3000K | .60° | 580 |
CLEAR GLASS |
ON/OFF | ||
| 207007.30.60.GL.D | 8W | 3000K | .60° | 580 |
CLEAR GLASS |
DALI | ||
| 207007.40.08.GL.0 | 8W | 4000K | .08° | 640 |
CLEAR GLASS |
ON/OFF | ||
| 207007.40.08.GL.D | 8W | 4000K | .08° | 640 |
CLEAR GLASS |
DALI | ||
| 207007.40.36.GL.0 | 8W | 4000K | .36° | 620 |
CLEAR GLASS |
ON/OFF | ||
| 207007.40.36.GL.D | 8W | 4000K | .36° | 620 |
CLEAR GLASS |
DALI | ||
| 207007.40.60.GL.0 | 8W | 4000K | .60° | 600 |
CLEAR GLASS |
ON/OFF | ||
| 207007.40.60.GL.D | 8W | 4000K | .60° | 600 |
CLEAR GLASS |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207008
Terra Mini Trimless Hp
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207008.27.04.GL.0 | 8W | 2700K | .04° | 670 |
CLEAR GLASS |
ON/OFF | ||
| 207008.27.04.GL.D | 8W | 2700K | .04° | 670 |
CLEAR GLASS |
DALI | ||
| 207008.27.08.GL.0 | 8W | 2700K | .08° | 622 |
CLEAR GLASS |
ON/OFF | ||
| 207008.27.08.GL.D | 8W | 2700K | .08° | 622 |
CLEAR GLASS |
DALI | ||
| 207008.27.10.GL.0 | 8W | 2700K | .10° | 642 |
CLEAR GLASS |
ON/OFF | ||
| 207008.27.10.GL.D | 8W | 2700K | .10° | 642 |
CLEAR GLASS |
DALI | ||
| 207008.27.55.GL.0 | 8W | 2700K | .55° | 529 |
CLEAR GLASS |
ON/OFF | ||
| 207008.27.55.GL.D | 8W | 2700K | .55° | 529 |
CLEAR GLASS |
DALI | ||
| 207008.30.04.GL.0 | 8W | 3000K | .04° | 690 |
CLEAR GLASS |
ON/OFF | ||
| 207008.30.04.GL.D | 8W | 3000K | .04° | 690 |
CLEAR GLASS |
DALI | ||
| 207008.30.08.GL.0 | 8W | 3000K | .08° | 642 |
CLEAR GLASS |
ON/OFF | ||
| 207008.30.08.GL.D | 8W | 3000K | .08° | 642 |
CLEAR GLASS |
DALI | ||
| 207008.30.10.GL.0 | 8W | 3000K | .10° | 662 |
CLEAR GLASS |
ON/OFF | ||
| 207008.30.10.GL.D | 8W | 3000K | .10° | 662 |
CLEAR GLASS |
DALI | ||
| 207008.30.55.GL.0 | 8W | 3000K | .55° | 546 |
CLEAR GLASS |
ON/OFF | ||
| 207008.30.55.GL.D | 8W | 3000K | .55° | 546 |
CLEAR GLASS |
DALI | ||
| 207008.40.04.GL.0 | 8W | 4000K | .04° | 703 |
CLEAR GLASS |
ON/OFF | ||
| 207008.40.04.GL.D | 8W | 4000K | .04° | 703 |
CLEAR GLASS |
DALI | ||
| 207008.40.08.GL.0 | 8W | 4000K | .08° | 656 |
CLEAR GLASS |
ON/OFF | ||
| 207008.40.08.GL.D | 8W | 4000K | .08° | 656 |
CLEAR GLASS |
DALI | ||
| 207008.40.10.GL.0 | 8W | 4000K | .10° | 676 |
CLEAR GLASS |
ON/OFF | ||
| 207008.40.10.GL.D | 8W | 4000K | .10° | 676 |
CLEAR GLASS |
DALI | ||
| 207008.40.55.GL.0 | 8W | 4000K | .55° | 558 |
CLEAR GLASS |
ON/OFF | ||
| 207008.40.55.GL.D | 8W | 4000K | .55° | 558 |
CLEAR GLASS |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207009
Terra Mini Trimless Hp Dmx Rgbw
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207009.RW.12.GL.D | 4.5W | RGBW | .12° | 160 |
CLEAR GLASS |
DALI | ||
| 207009.RW.12.GL.X | 4.5W | RGBW | .12° | 160 |
CLEAR GLASS |
DMX | ||
| 207009.RW.25.GL.D | 4.5W | RGBW | .25° | 152 |
CLEAR GLASS |
DALI | ||
| 207009.RW.25.GL.X | 4.5W | RGBW | .25° | 152 |
CLEAR GLASS |
DMX | ||
| 207009.RW.35.GL.D | 4.5W | RGBW | .35° | 145 |
CLEAR GLASS |
DALI | ||
| 207009.RW.35.GL.X | 4.5W | RGBW | .35° | 145 |
CLEAR GLASS |
DMX | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
207010
Terra Mini Trimless Diffused
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 207010.27.DF.SS.0 | 6W | 2700K | .DF | 100 |
STAINLESS STEEL |
ON/OFF | ||
| 207010.27.DF.SS.D | 6W | 2700K | .DF | 100 |
STAINLESS STEEL |
DALI | ||
| 207010.30.DF.SS.0 | 6W | 3000K | .DF | 110 |
STAINLESS STEEL |
ON/OFF | ||
| 207010.30.DF.SS.D | 6W | 3000K | .DF | 110 |
STAINLESS STEEL |
DALI | ||
| 207010.40.DF.SS.0 | 6W | 4000K | .DF | 120 |
STAINLESS STEEL |
ON/OFF | ||
| 207010.40.DF.SS.D | 6W | 4000K | .DF | 120 |
STAINLESS STEEL |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
