Ground-recessed luminaire in round shape for outdoor installation, phospho-chromatised and polyester powder coated die-cast copper-free aluminium body and stainless steel AISI 304 frame, tempered safety glass, moulded silicone gasket. Symmetrical light distribution with adjustable optics. Built-in LED driver 220-240V 50-60Hz, with 1 CREE CXB 3050 COB LED. IP67 rating.
Hydrofloor
Maxi Cob
201069-71

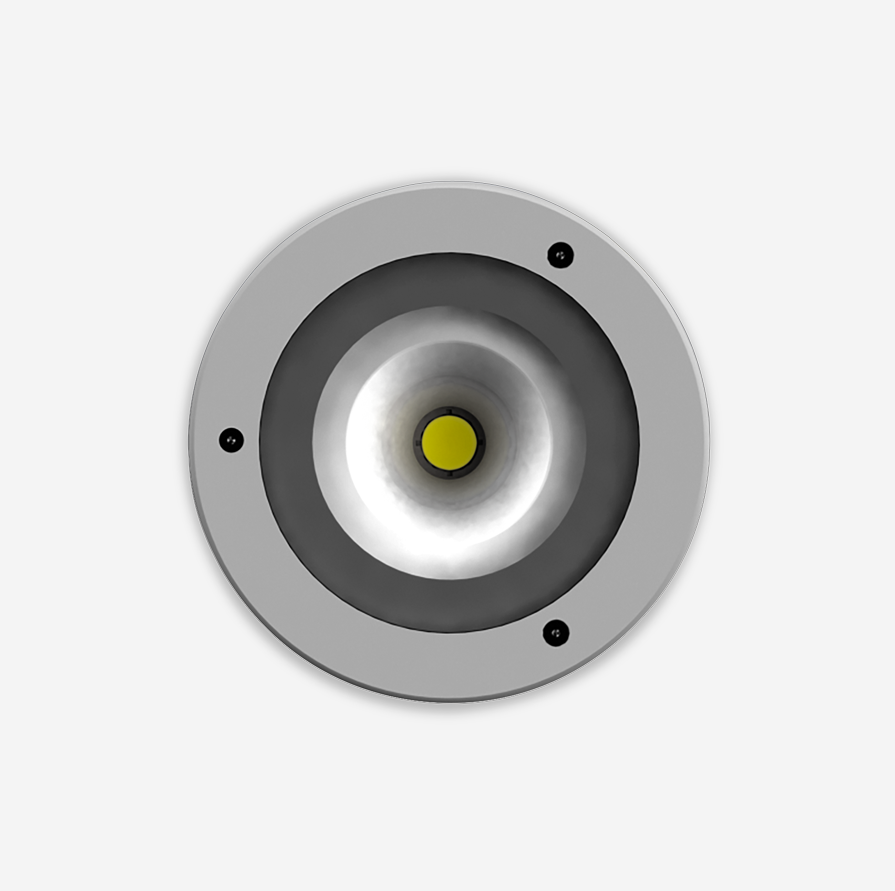

Product IMAGE
Technical drawing
201069
Hydrofloor Maxi Cob
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201069.27.04.SS.0 | 32W | 2700K | .04° | 3716 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.27.04.SS.1 | 32W | 2700K | .04° | 3716 |
STAINLESS STEEL |
1-10V | ||
| 201069.27.04.SS.D | 32W | 2700K | .04° | 3716 |
STAINLESS STEEL |
DALI | ||
| 201069.27.20.SS.0 | 32W | 2700K | .20° | 3779 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.27.20.SS.1 | 32W | 2700K | .20° | 3779 |
STAINLESS STEEL |
1-10V | ||
| 201069.27.20.SS.D | 32W | 2700K | .20° | 3779 |
STAINLESS STEEL |
DALI | ||
| 201069.27.40.SS.0 | 32W | 2700K | .40° | 3716 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.27.40.SS.1 | 32W | 2700K | .40° | 3716 |
STAINLESS STEEL |
1-10V | ||
| 201069.27.40.SS.D | 32W | 2700K | .40° | 3716 |
STAINLESS STEEL |
DALI | ||
| 201069.30.04.SS.0 | 32W | 3000K | .04° | 3912 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.30.04.SS.1 | 32W | 3000K | .04° | 3912 |
STAINLESS STEEL |
1-10V | ||
| 201069.30.04.SS.D | 32W | 3000K | .04° | 3912 |
STAINLESS STEEL |
DALI | ||
| 201069.30.20.SS.0 | 32W | 3000K | .20° | 3978 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.30.20.SS.1 | 32W | 3000K | .20° | 3978 |
STAINLESS STEEL |
1-10V | ||
| 201069.30.20.SS.D | 32W | 3000K | .20° | 3978 |
STAINLESS STEEL |
DALI | ||
| 201069.30.40.SS.0 | 32W | 3000K | .40° | 3912 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.30.40.SS.1 | 32W | 3000K | .40° | 3912 |
STAINLESS STEEL |
1-10V | ||
| 201069.30.40.SS.D | 32W | 3000K | .40° | 3912 |
STAINLESS STEEL |
DALI | ||
| 201069.40.04.SS.0 | 32W | 4000K | .04° | 4001 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.40.04.SS.1 | 32W | 4000K | .04° | 4001 |
STAINLESS STEEL |
1-10V | ||
| 201069.40.04.SS.D | 32W | 4000K | .04° | 4001 |
STAINLESS STEEL |
DALI | ||
| 201069.40.20.SS.0 | 32W | 4000K | .20° | 4050 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.40.20.SS.1 | 32W | 4000K | .20° | 4050 |
STAINLESS STEEL |
1-10V | ||
| 201069.40.20.SS.D | 32W | 4000K | .20° | 4050 |
STAINLESS STEEL |
DALI | ||
| 201069.40.40.SS.0 | 32W | 4000K | .40° | 4001 |
STAINLESS STEEL |
ON/OFF | ||
| 201069.40.40.SS.1 | 32W | 4000K | .40° | 4001 |
STAINLESS STEEL |
1-10V | ||
| 201069.40.40.SS.D | 32W | 4000K | .40° | 4001 |
STAINLESS STEEL |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
201071
Hydrofloor Maxi Cob Asymmetric
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 201071.27.WW.SS.0 | 32W | 2700K | .WW | 3023 |
STAINLESS STEEL |
ON/OFF | ||
| 201071.27.WW.SS.1 | 32W | 2700K | .WW | 3023 |
STAINLESS STEEL |
1-10V | ||
| 201071.27.WW.SS.D | 32W | 2700K | .WW | 3023 |
STAINLESS STEEL |
DALI | ||
| 201071.30.WW.SS.0 | 32W | 3000K | .WW | 3182 |
STAINLESS STEEL |
ON/OFF | ||
| 201071.30.WW.SS.1 | 32W | 3000K | .WW | 3182 |
STAINLESS STEEL |
1-10V | ||
| 201071.30.WW.SS.D | 32W | 3000K | .WW | 3182 |
STAINLESS STEEL |
DALI | ||
| 201071.40.WW.SS.0 | 32W | 4000K | .WW | 3240 |
STAINLESS STEEL |
ON/OFF | ||
| 201071.40.WW.SS.1 | 32W | 4000K | .WW | 3240 |
STAINLESS STEEL |
1-10V | ||
| 201071.40.WW.SS.D | 32W | 4000K | .WW | 3240 |
STAINLESS STEEL |
DALI | ||
