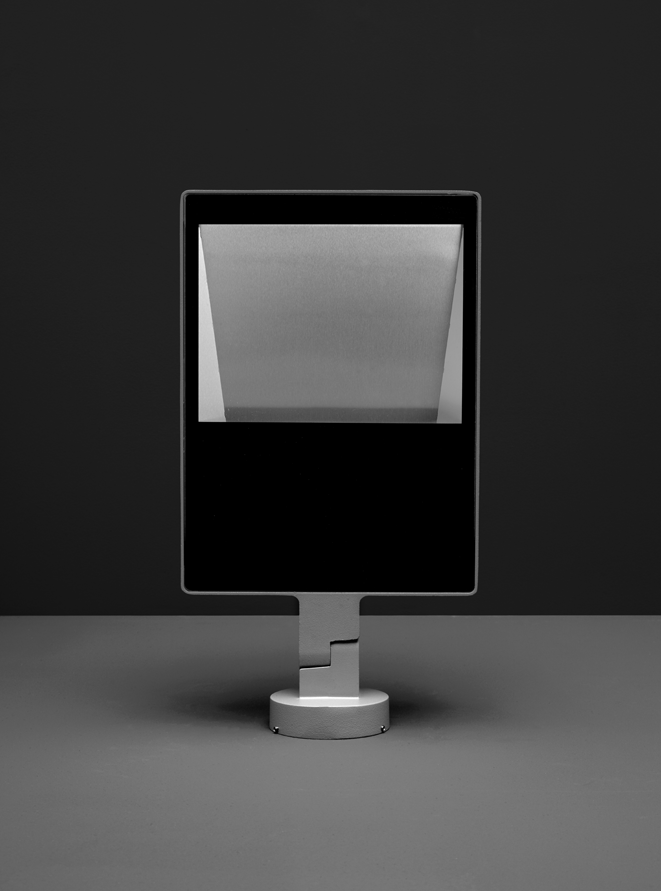

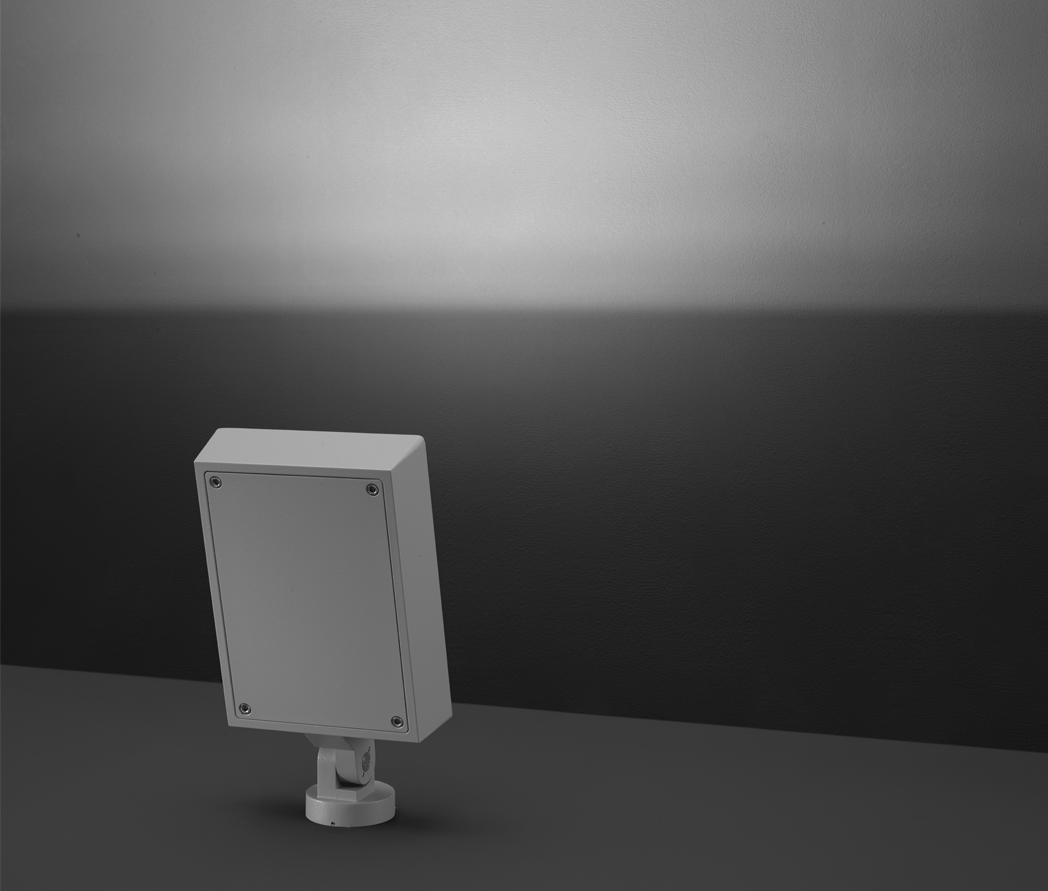

Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Asymmetrical wide light distribution. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 120 x mid-power SAMSUNG 2835 LED. IP66 rating
Zeus
Maxi
Asymm
101508
-
Wattage
42W
-
CCT
3000K
-
Beam Angle
.AS
-
Lumens
2995
-
Finish
RAL9006 -
IP Rating
IP66
-
IK Rating
IK09
-
Coating
Polyester powder coating with phosphocromating pre-finish
-
Light source
120 x mid-power SAMSUNG 2835 LED
-
Screws
Stainless steel
-
Transformer
Electrical power supply 220/240V 50/60Hz built-in
-
Gasket
Silicone rubber
-
Glass
Tempered
-
Cable gland
M16 rubber grommet
-
Power cable
1 mt. power cable included
-
Gross weight
3,50 Kg
Integrated Accessories
101508.30.AS.01.D. _ _
Built-in accessories to be requested when ordering
example 101508.30.AS.01.D.HC
.00
NO ACCESSORY
No accessory
.PP
POLE PLATE
Pole plate for pole mounting of all Ring models, suitable to be used with poles diam. min 76 mm and diam. max 120 mm. Can be positioned on various staggered levels or on a single level, with the same pole. Made in phosphochromatised and polyester powder coated dia-cast copper-free aluminum material, mouled silicone gaskets and screws in stainless steel.
Light Distribution
Download
