Projector for outdoor installation on a façade/wall. Completely realized in stainless steel AISI 316L, tempered safety glass, moulded silicone gasket and stainless steel screws. With 1 direct 220-240V LUMENS “EDC 38C” COB LED. IP66 rating.
Nanospot Steel
Mini
102202-03

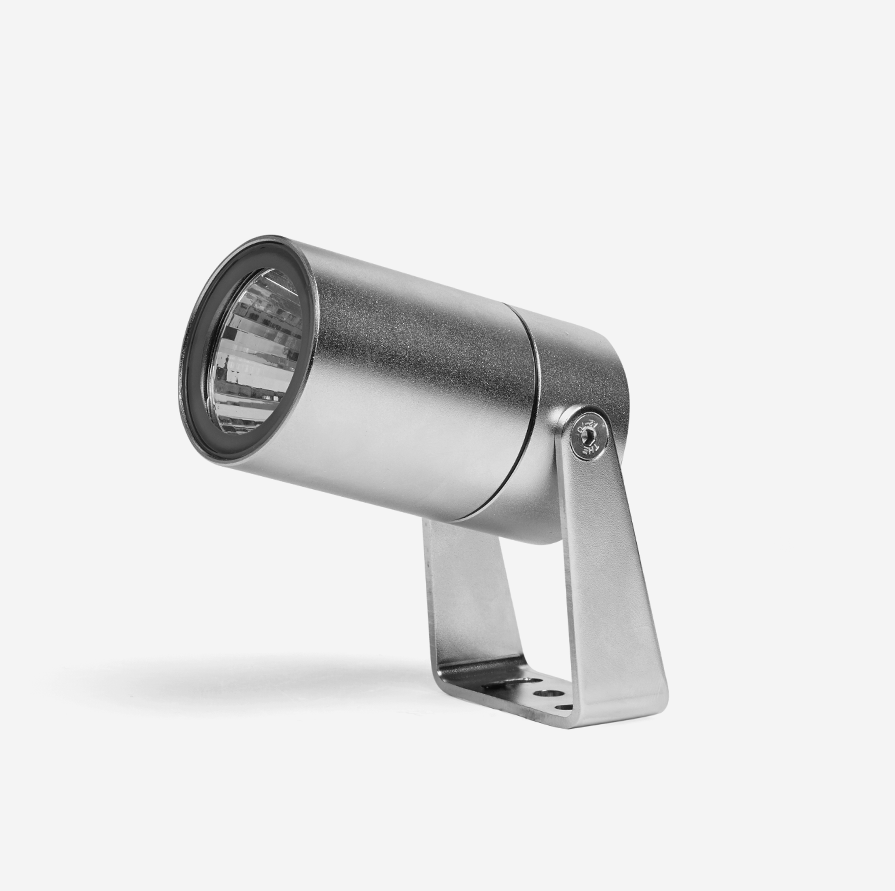

Product IMAGE
Technical drawing
102202
Nanospot Steel Mini Cob
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 102202.30.04.SS.0 | 4W | 3000K | .04° | 240 |
STAINLESS STEEL |
ON/OFF | ||
| 102202.30.20.SS.0 | 4W | 3000K | .20° | 250 |
STAINLESS STEEL |
ON/OFF | ||
| 102202.40.04.SS.0 | 4W | 4000K | .04° | 250 |
STAINLESS STEEL |
ON/OFF | ||
| 102202.40.20.SS.0 | 4W | 4000K | .20° | 260 |
STAINLESS STEEL |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
102203
Nanospot Steel Mini Hp
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 102203.27.04.SS.0 | W2 | 2700K | .04° | 656 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.27.08.SS.0 | W2 | 2700K | .08° | 610 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.27.10.SS.0 | W2 | 2700K | .10° | 629 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.27.55.SS.0 | W2 | 2700K | .55° | 519 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.30.04.SS.0 | W2 | 3000K | .04° | 690 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.30.08.SS.0 | W2 | 3000K | .08° | 642 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.30.10.SS.0 | W2 | 3000K | .10° | 662 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.30.55.SS.0 | W2 | 3000K | .55° | 546 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.40.04.SS.0 | W2 | 4000K | .04° | 703 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.40.08.SS.0 | W2 | 4000K | .08° | 656 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.40.10.SS.0 | W2 | 4000K | .10° | 676 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
| 102203.40.55.SS.0 | W2 | 4000K | .55° | 558 lm (@500mA) |
STAINLESS STEEL |
ON/OFF | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
102203
Nanospot Steel Mini Rgbw
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 102203.RW.12.SS.D | 4.5W | RGBW | .12° | 160 |
STAINLESS STEEL |
DALI | ||
| 102203.RW.12.SS.X | 4.5W | RGBW | .12° | 160 |
STAINLESS STEEL |
DMX | ||
| 102203.RW.25.SS.D | 4.5W | RGBW | .25° | 152 |
STAINLESS STEEL |
DALI | ||
| 102203.RW.25.SS.X | 4.5W | RGBW | .25° | 152 |
STAINLESS STEEL |
DMX | ||
| 102203.RW.35.SS.D | 4.5W | RGBW | .35° | 145 |
STAINLESS STEEL |
DALI | ||
| 102203.RW.35.SS.X | 4.5W | RGBW | .35° | 145 |
STAINLESS STEEL |
DMX | ||
