Projector for outdoor installation on a façade/wall. Completely realised in stainless steel AISI 316L, tempered safety glass, moulded silicone gasket and stainless steel screws. With 1 direct 220-240V LUMENS “EDC 47C” COB LED. IP66 rating.
Nanospot Steel
Medium
102204

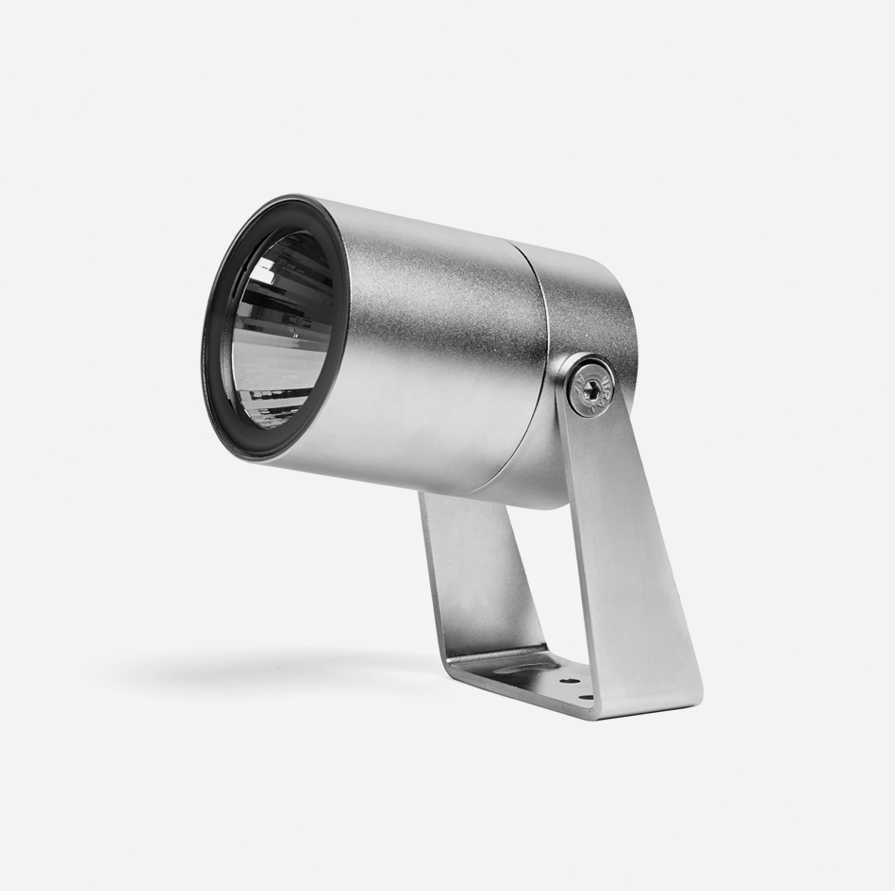

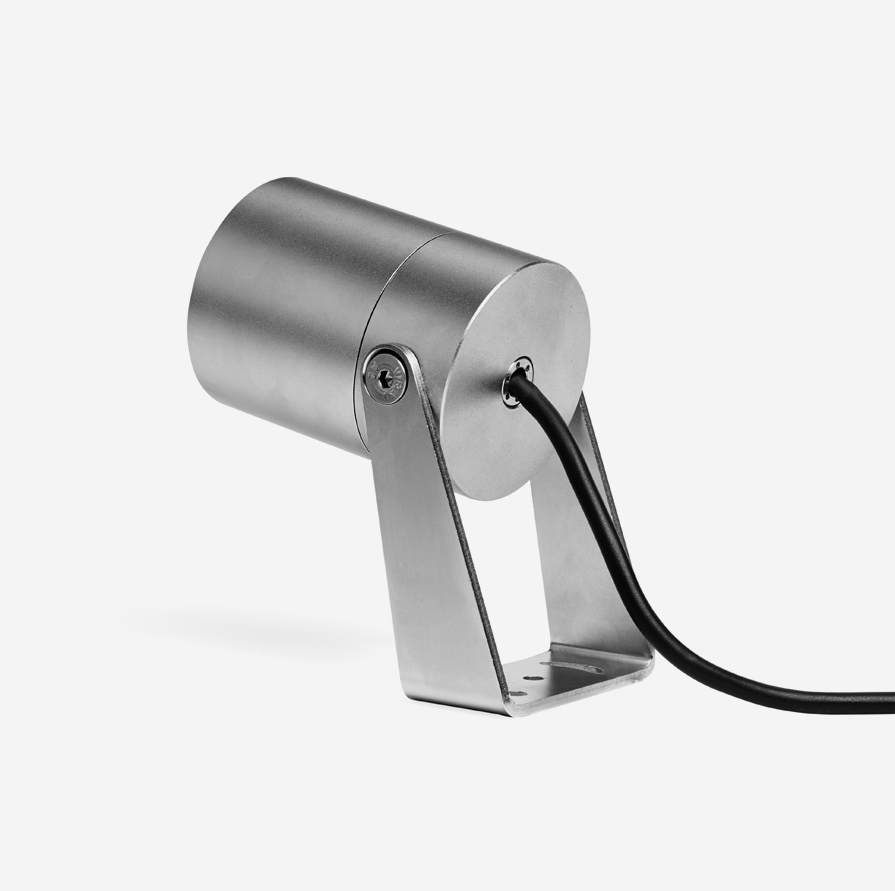

Product IMAGE
Technical drawing
102204
Nanospot Steel Medium Cob
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 102204.30.04.SS.0 | 10W | 3000K | .04° | 690 |
STAINLESS STEEL |
ON/OFF | ||
| 102204.30.04.SS.2 | 10W | 3000K | .04° | 690 |
STAINLESS STEEL |
phase cut - triac | ||
| 102204.30.20.SS.0 | 10W | 3000K | .20° | 700 |
STAINLESS STEEL |
ON/OFF | ||
| 102204.30.20.SS.2 | 10W | 3000K | .20° | 700 |
STAINLESS STEEL |
phase cut - triac | ||
| 102204.40.04.SS.0 | 10W | 4000K | .04° | 720 |
STAINLESS STEEL |
ON/OFF | ||
| 102204.40.04.SS.2 | 10W | 4000K | .04° | 720 |
STAINLESS STEEL |
phase cut - triac | ||
| 102204.40.20.SS.0 | 10W | 4000K | .20° | 735 |
STAINLESS STEEL |
ON/OFF | ||
| 102204.40.20.SS.2 | 10W | 4000K | .20° | 735 |
STAINLESS STEEL |
phase cut - triac | ||
