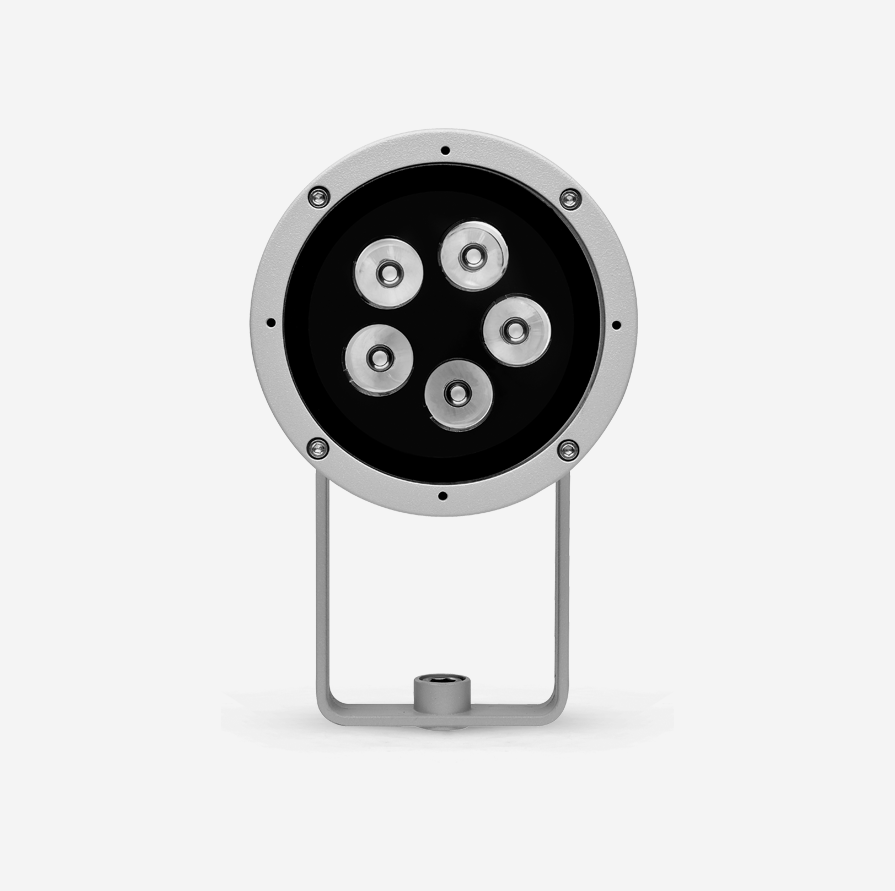

Round floodlight for outdoor installation on a façade/wall. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, tempered safety glass, moulded silicone gasket and stainless steel screws. Built-in LED driver 220-240V 50-60Hz, with 5 CREE XP-G2 high-power LED. IP65 rating.
Flash
Medium
101101-02
Product IMAGE
Technical drawing
101101
Flash Medium
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101101.27.04.01.0 | 8W | 2700K | .04° | 618 |
RAL9006 |
ON/OFF | ||
| 101101.27.04.01.1 | 8W | 2700K | .04° | 618 |
RAL9006 |
1-10V | ||
| 101101.27.04.01.D | 8W | 2700K | .04° | 618 |
RAL9006 |
DALI | ||
| 101101.27.04.02.0 | 8W | 2700K | .04° | 618 |
RAL7016 |
ON/OFF | ||
| 101101.27.04.02.1 | 8W | 2700K | .04° | 618 |
RAL7016 |
1-10V | ||
| 101101.27.04.02.D | 8W | 2700K | .04° | 618 |
RAL7016 |
DALI | ||
| 101101.27.04.03.0 | 8W | 2700K | .04° | 618 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.27.04.03.1 | 8W | 2700K | .04° | 618 |
RAL9005 BLACK |
1-10V | ||
| 101101.27.04.03.D | 8W | 2700K | .04° | 618 |
RAL9005 BLACK |
DALI | ||
| 101101.27.10.01.0 | 8W | 2700K | .10° | 684 |
RAL9006 |
ON/OFF | ||
| 101101.27.10.01.1 | 8W | 2700K | .10° | 684 |
RAL9006 |
1-10V | ||
| 101101.27.10.01.D | 8W | 2700K | .10° | 684 |
RAL9006 |
DALI | ||
| 101101.27.10.02.0 | 8W | 2700K | .10° | 684 |
RAL7016 |
ON/OFF | ||
| 101101.27.10.02.1 | 8W | 2700K | .10° | 684 |
RAL7016 |
1-10V | ||
| 101101.27.10.02.D | 8W | 2700K | .10° | 684 |
RAL7016 |
DALI | ||
| 101101.27.10.03.0 | 8W | 2700K | .10° | 684 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.27.10.03.1 | 8W | 2700K | .10° | 684 |
RAL9005 BLACK |
1-10V | ||
| 101101.27.10.03.D | 8W | 2700K | .10° | 684 |
RAL9005 BLACK |
DALI | ||
| 101101.27.30.01.0 | 8W | 2700K | .30° | 650 |
RAL9006 |
ON/OFF | ||
| 101101.27.30.01.1 | 8W | 2700K | .30° | 650 |
RAL9006 |
1-10V | ||
| 101101.27.30.01.D | 8W | 2700K | .30° | 650 |
RAL9006 |
DALI | ||
| 101101.27.30.02.0 | 8W | 2700K | .30° | 650 |
RAL7016 |
ON/OFF | ||
| 101101.27.30.02.1 | 8W | 2700K | .30° | 650 |
RAL7016 |
1-10V | ||
| 101101.27.30.02.D | 8W | 2700K | .30° | 650 |
RAL7016 |
DALI | ||
| 101101.27.30.03.0 | 8W | 2700K | .30° | 650 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.27.30.03.1 | 8W | 2700K | .30° | 650 |
RAL9005 BLACK |
1-10V | ||
| 101101.27.30.03.D | 8W | 2700K | .30° | 650 |
RAL9005 BLACK |
DALI | ||
| 101101.30.04.01.0 | 8W | 3000K | .04° | 650 |
RAL9006 |
ON/OFF | ||
| 101101.30.04.01.1 | 8W | 3000K | .04° | 650 |
RAL9006 |
1-10V | ||
| 101101.30.04.01.D | 8W | 3000K | .04° | 650 |
RAL9006 |
DALI | ||
| 101101.30.04.02.0 | 8W | 3000K | .04° | 650 |
RAL7016 |
ON/OFF | ||
| 101101.30.04.02.1 | 8W | 3000K | .04° | 650 |
RAL7016 |
1-10V | ||
| 101101.30.04.02.D | 8W | 3000K | .04° | 650 |
RAL7016 |
DALI | ||
| 101101.30.04.03.0 | 8W | 3000K | .04° | 650 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.30.04.03.1 | 8W | 3000K | .04° | 650 |
RAL9005 BLACK |
1-10V | ||
| 101101.30.04.03.D | 8W | 3000K | .04° | 650 |
RAL9005 BLACK |
DALI | ||
| 101101.30.10.01.0 | 8W | 3000K | .10° | 720 |
RAL9006 |
ON/OFF | ||
| 101101.30.10.01.1 | 8W | 3000K | .10° | 720 |
RAL9006 |
1-10V | ||
| 101101.30.10.01.D | 8W | 3000K | .10° | 720 |
RAL9006 |
DALI | ||
| 101101.30.10.02.0 | 8W | 3000K | .10° | 720 |
RAL7016 |
ON/OFF | ||
| 101101.30.10.02.1 | 8W | 3000K | .10° | 720 |
RAL7016 |
1-10V | ||
| 101101.30.10.02.D | 8W | 3000K | .10° | 720 |
RAL7016 |
DALI | ||
| 101101.30.10.03.0 | 8W | 3000K | .10° | 720 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.30.10.03.1 | 8W | 3000K | .10° | 720 |
RAL9005 BLACK |
1-10V | ||
| 101101.30.10.03.D | 8W | 3000K | .10° | 720 |
RAL9005 BLACK |
DALI | ||
| 101101.30.30.01.0 | 8W | 3000K | .30° | 684 |
RAL9006 |
ON/OFF | ||
| 101101.30.30.01.1 | 8W | 3000K | .30° | 684 |
RAL9006 |
1-10V | ||
| 101101.30.30.01.D | 8W | 3000K | .30° | 684 |
RAL9006 |
DALI | ||
| 101101.30.30.02.0 | 8W | 3000K | .30° | 684 |
RAL7016 |
ON/OFF | ||
| 101101.30.30.02.1 | 8W | 3000K | .30° | 684 |
RAL7016 |
1-10V | ||
| 101101.30.30.02.D | 8W | 3000K | .30° | 684 |
RAL7016 |
DALI | ||
| 101101.30.30.03.0 | 8W | 3000K | .30° | 684 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.30.30.03.1 | 8W | 3000K | .30° | 684 |
RAL9005 BLACK |
1-10V | ||
| 101101.30.30.03.D | 8W | 3000K | .30° | 684 |
RAL9005 BLACK |
DALI | ||
| 101101.40.04.01.0 | 8W | 4000K | .04° | 677 |
RAL9006 |
ON/OFF | ||
| 101101.40.04.01.1 | 8W | 4000K | .04° | 677 |
RAL9006 |
1-10V | ||
| 101101.40.04.01.D | 8W | 4000K | .04° | 677 |
RAL9006 |
DALI | ||
| 101101.40.04.02.0 | 8W | 4000K | .04° | 677 |
RAL7016 |
ON/OFF | ||
| 101101.40.04.02.1 | 8W | 4000K | .04° | 677 |
RAL7016 |
1-10V | ||
| 101101.40.04.02.D | 8W | 4000K | .04° | 677 |
RAL7016 |
DALI | ||
| 101101.40.04.03.0 | 8W | 4000K | .04° | 677 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.40.04.03.1 | 8W | 4000K | .04° | 677 |
RAL9005 BLACK |
1-10V | ||
| 101101.40.04.03.D | 8W | 4000K | .04° | 677 |
RAL9005 BLACK |
DALI | ||
| 101101.40.10.01.0 | 8W | 4000K | .10° | 750 |
RAL9006 |
ON/OFF | ||
| 101101.40.10.01.1 | 8W | 4000K | .10° | 750 |
RAL9006 |
1-10V | ||
| 101101.40.10.01.D | 8W | 4000K | .10° | 750 |
RAL9006 |
DALI | ||
| 101101.40.10.02.0 | 8W | 4000K | .10° | 750 |
RAL7016 |
ON/OFF | ||
| 101101.40.10.02.1 | 8W | 4000K | .10° | 750 |
RAL7016 |
1-10V | ||
| 101101.40.10.02.D | 8W | 4000K | .10° | 750 |
RAL7016 |
DALI | ||
| 101101.40.10.03.0 | 8W | 4000K | .10° | 750 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.40.10.03.1 | 8W | 4000K | .10° | 750 |
RAL9005 BLACK |
1-10V | ||
| 101101.40.10.03.D | 8W | 4000K | .10° | 750 |
RAL9005 BLACK |
DALI | ||
| 101101.40.30.01.0 | 8W | 4000K | .30° | 713 |
RAL9006 |
ON/OFF | ||
| 101101.40.30.01.1 | 8W | 4000K | .30° | 713 |
RAL9006 |
1-10V | ||
| 101101.40.30.01.D | 8W | 4000K | .30° | 713 |
RAL9006 |
DALI | ||
| 101101.40.30.02.0 | 8W | 4000K | .30° | 713 |
RAL7016 |
ON/OFF | ||
| 101101.40.30.02.1 | 8W | 4000K | .30° | 713 |
RAL7016 |
1-10V | ||
| 101101.40.30.02.D | 8W | 4000K | .30° | 713 |
RAL7016 |
DALI | ||
| 101101.40.30.03.0 | 8W | 4000K | .30° | 713 |
RAL9005 BLACK |
ON/OFF | ||
| 101101.40.30.03.1 | 8W | 4000K | .30° | 713 |
RAL9005 BLACK |
1-10V | ||
| 101101.40.30.03.D | 8W | 4000K | .30° | 713 |
RAL9005 BLACK |
DALI | ||
FILTER
Watt
Light Source
Beam Angle
Lumens
Finish
Dimming
101102
Flash Medium Cob
view code and download
Technical features
| Product code | watt | light source | Beam angle | LUMENS | finish | Dimming | ||
|---|---|---|---|---|---|---|---|---|
| 101102.27.35.01.0 | 18W | 2700K | .35° | 1454 |
RAL9006 |
ON/OFF | ||
| 101102.27.35.01.1 | 18W | 2700K | .35° | 1454 |
RAL9006 |
1-10V | ||
| 101102.27.35.01.D | 18W | 2700K | .35° | 1454 |
RAL9006 |
DALI | ||
| 101102.27.35.02.0 | 18W | 2700K | .35° | 1454 |
RAL7016 |
ON/OFF | ||
| 101102.27.35.02.1 | 18W | 2700K | .35° | 1454 |
RAL7016 |
1-10V | ||
| 101102.27.35.02.D | 18W | 2700K | .35° | 1454 |
RAL7016 |
DALI | ||
| 101102.27.35.03.0 | 18W | 2700K | .35° | 1454 |
RAL9005 BLACK |
ON/OFF | ||
| 101102.27.35.03.1 | 18W | 2700K | .35° | 1454 |
RAL9005 BLACK |
1-10V | ||
| 101102.27.35.03.D | 18W | 2700K | .35° | 1454 |
RAL9005 BLACK |
DALI | ||
| 101102.30.35.01.0 | 18W | 3000K | .35° | 1530 |
RAL9006 |
ON/OFF | ||
| 101102.30.35.01.1 | 18W | 3000K | .35° | 1530 |
RAL9006 |
1-10V | ||
| 101102.30.35.01.D | 18W | 3000K | .35° | 1530 |
RAL9006 |
DALI | ||
| 101102.30.35.02.0 | 18W | 3000K | .35° | 1530 |
RAL7016 |
ON/OFF | ||
| 101102.30.35.02.1 | 18W | 3000K | .35° | 1530 |
RAL7016 |
1-10V | ||
| 101102.30.35.02.D | 18W | 3000K | .35° | 1530 |
RAL7016 |
DALI | ||
| 101102.30.35.03.0 | 18W | 3000K | .35° | 1530 |
RAL9005 BLACK |
ON/OFF | ||
| 101102.30.35.03.1 | 18W | 3000K | .35° | 1530 |
RAL9005 BLACK |
1-10V | ||
| 101102.30.35.03.D | 18W | 3000K | .35° | 1530 |
RAL9005 BLACK |
DALI | ||
| 101102.40.35.01.0 | 18W | 4000K | .35° | 1700 |
RAL9006 |
ON/OFF | ||
| 101102.40.35.01.1 | 18W | 4000K | .35° | 1700 |
RAL9006 |
1-10V | ||
| 101102.40.35.01.D | 18W | 4000K | .35° | 1700 |
RAL9006 |
DALI | ||
| 101102.40.35.02.0 | 18W | 4000K | .35° | 1700 |
RAL7016 |
ON/OFF | ||
| 101102.40.35.02.1 | 18W | 4000K | .35° | 1700 |
RAL7016 |
1-10V | ||
| 101102.40.35.02.D | 18W | 4000K | .35° | 1700 |
RAL7016 |
DALI | ||
| 101102.40.35.03.0 | 18W | 4000K | .35° | 1700 |
RAL9005 BLACK |
ON/OFF | ||
| 101102.40.35.03.1 | 18W | 4000K | .35° | 1700 |
RAL9005 BLACK |
1-10V | ||
| 101102.40.35.03.D | 18W | 4000K | .35° | 1700 |
RAL9005 BLACK |
DALI | ||
