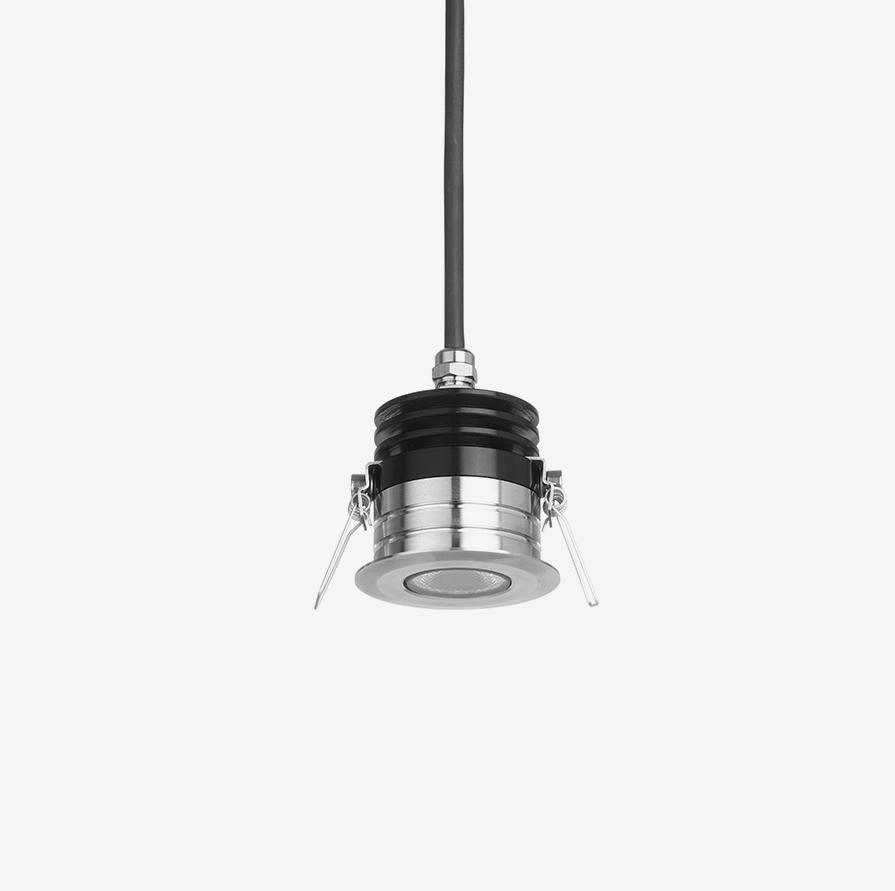

Round ceiling-recessed luminaire for outdoor installation, hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XP-L LED. IP68 rating.
Nano Downlight
Xs
709001
-
Wattage
W3
-
CCT
4000K
-
Beam Angle
.30°
-
Lumens
285 lm (@700mA)
-
Finish
STAINLESS STEEL -
IP Rating
IP68
-
IK Rating
IK09
-
Light source
NR. 1 x CREE XP-L LED
-
Transformer
Constant current max 700 mA
-
Gasket
Silicone rubber
-
Glass
Tempered
-
Cable gland
M12
-
Power cable
1 mt. neoprene power cable included
-
Gross weight
0,60 Kg
REMOTE DRIVER SELECTION
| ALVIT Italy | AL1435S-IP | constant current 350mA | 14W | IP67 | min 1 - max 8 |
| ALVIT Italy | AL1450S-IP | constant current 500mA | 14W | IP67 | min 1 - max 6 |
| ALVIT Italy | AL1470S-IP | constant current 700mA | 14W | IP67 | min 1 - max 4 |
Integrated Accessories
709001.40.30.SS.0. _ _
Built-in accessories to be requested when ordering
example 709001.40.30.SS.0.HC
.00
NO ACCESSORY
No accessory
STANDARD GLARE SHIELD XS
Glare shield accessory made in hard anodized black aluminum, providing good balance in between glare control and light output.
.SC
SUPER COMFORT GLARE SHIELD XS
Glare shield accessory made in hard anodized black aluminum, for applications requiring very reduced glaring; minimal light loss on the light surface but overall lumen output typically reduced by 50%.
.HC
HYONECOMB LOUVER XS
Light Distribution
